FGN.2M.319.XLCM
ActiveLEMO

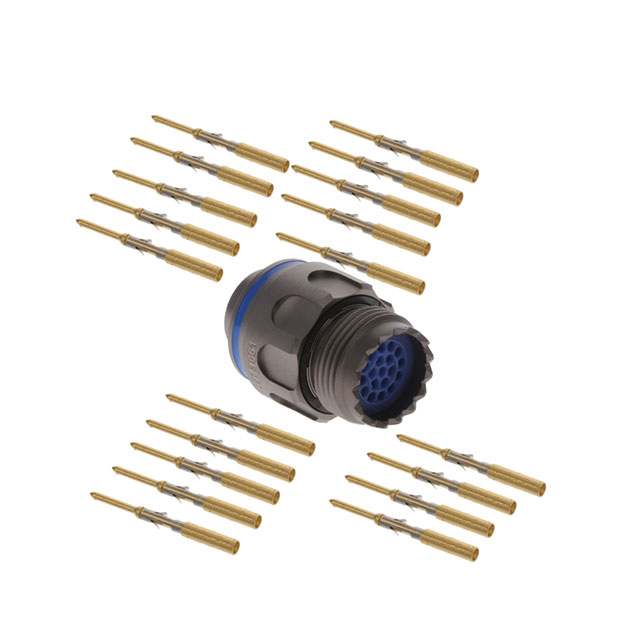

CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FGN.2M.319.XLCM
ActiveLEMO
CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FGN.2M.319.XLCM | FGN.2M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening | - | 0.512 in |
| Cable Opening | - | 13 mm |
| Cable Opening | - | 13 mm |
| Cable Opening | - | 6.5 mm |
| Cable Opening | - | 0.512 in |
| Cable Opening | - | 0.256 in |
| Color | Gray | Gray |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 4 A | 4 - 23 A |
| Features | Coupling Nut | Coupling Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 19 | 6 - 19 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 319 | 306 - 319 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
FGN.2M Series
CONN PLUG MALE 10POS GOLD CRIMP
| Part | Contact Finish - Mating | Contact Material | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Ingress Protection | Shell Finish | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Mounting Type | Connector Type | Current Rating (Amps) | Shielding | Color | Features | Insert Material | Shell Size - Insert | Applications | Orientation | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FGN.2M.310.XLCM | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 10 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 8 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 310 | Aerospace, Automotive, Aviation, Military | N | ||||||
LEMO FGN.2M.319.XLC | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 19 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 4 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 319 | Aerospace, Automotive, Aviation, Military | N | 0.512 in | 13 mm | ||||
LEMO FGN.2M.310.XLBT | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 10 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 8 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 310 | Aerospace, Automotive, Aviation, Military | N | 0.512 in | 13 mm | ||||
LEMO FGN.2M.310.XRC8 | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 10 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 6 A, 23 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 310 | Aerospace, Automotive, Aviation, Military | N | 13 mm | 6.5 mm | 0.512 in | 0.256 in | ||
LEMO FGN.2M.308.XRCT6 | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 8 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 7 A, 23 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 308 | Aerospace, Automotive, Aviation, Military | N | 13 mm | 6.5 mm | 0.512 in | 0.256 in | ||
LEMO FGN.2M.319.XLCM | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 19 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 4 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 319 | Aerospace, Automotive, Aviation, Military | N | ||||||
LEMO FGN.2M.312.XLCT | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 12 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 7 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 312 | Aerospace, Automotive, Aviation, Military | N | 0.512 in | 13 mm | ||||
LEMO FGN.2M.312.XLCM | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 12 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 7 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 312 | Aerospace, Automotive, Aviation, Military | N | ||||||
LEMO FGN.2M.310.XLCT | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 10 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 8 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 310 | Aerospace, Automotive, Aviation, Military | N | 0.512 in | 13 mm | ||||
LEMO FGN.2M.308.XLCT | Gold | Brass | Crimp | -55 °C | 200 °C | Metal | IP68 - Dust Tight, Waterproof | Nickel | 8 | 1 µm | 39.4 µin | Aluminum Alloy | Free Hanging (In-Line) | Male Pins, Plug | 10 A | Shielded | Gray | Coupling Nut | Polyetheretherketone (PEEK) | 308 | Aerospace, Automotive, Aviation, Military | N | 0.512 in | 13 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 96.05 | |
Description
General part information
FGN.2M Series
19 Position Circular Connector Plug, Male Pins Crimp
