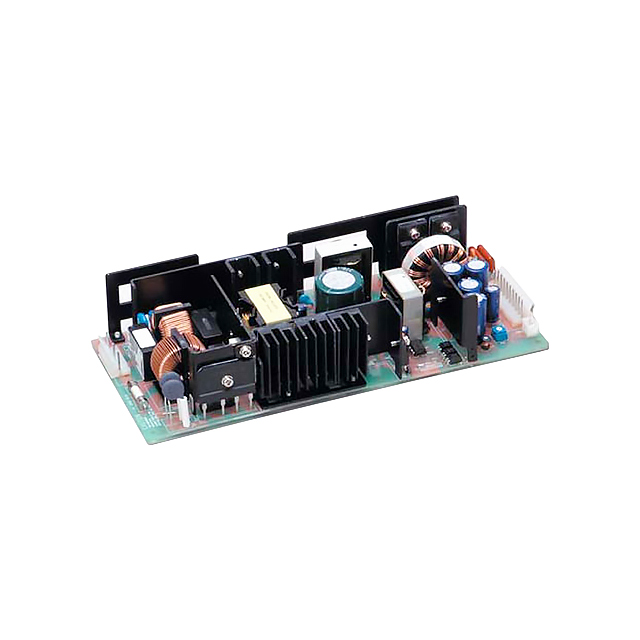

ZWD150PAF-0524/TA

TDK-LAMBDA

AC/DC CONVERTER 5V 24V 150W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZWD150PAF-0524/TA

TDK-LAMBDA

AC/DC CONVERTER 5V 24V 150W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.07
		10	$ 143.33
		25	$ 136.09
		50	$ 131.44

Description

General part information

ZWD150 Series

Enclosed AC DC Converters 2 Output 5V 24V 85 ~ 265 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZWD150PAF-0524/TA	ZWD150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	5 A	5 A
Current - Output 2 [custom]	6 A	6 A
Efficiency	80 %	80 %
Features	PFC, Universal Input, Adjustable Output, DC Input Capable, Remote On/Off	PFC, Universal Input, Adjustable Output, DC Input Capable, Remote On/Off
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	150 W	150 W
Size / Dimension [x]	222 mm	222 mm
Size / Dimension [x]	8.74 "	8.74 "
Size / Dimension [y]	85.1 mm	85.1 mm
Size / Dimension [y]	3.35 in	3.35 in
Size / Dimension [z]	1.57 "	1.57 "
Size / Dimension [z]	40 mm	40 mm
Type	Enclosed	Enclosed, Open Frame
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	24 V	24 V

ZWD150 Series

AC/DC CONVERTER 5V 24V 150W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Type	Mounting Type	Voltage - Isolation	Current - Output 2 [custom]	Number of Outputs	Efficiency	Approval Agency	Voltage - Output 1	Voltage - Output 2	Features	Current - Output 1	Power (Watts)	Applications
TDK-LAMBDA ZWD150PAF-0524/JA	-10 °C	70 °C	85 VAC	265 VAC	222 mm	85.1 mm	3.35 in	8.74 "	1.57 "	40 mm	Enclosed	Chassis Mount	3000 V	6 A	2	80 %	CE	5 V	24 V	Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input	5 A	150 W	ITE (Commercial)
TDK-LAMBDA ZWD150PAF-0524/TA	-10 °C	70 °C	85 VAC	265 VAC	222 mm	85.1 mm	3.35 in	8.74 "	1.57 "	40 mm	Enclosed	Chassis Mount	3000 V	6 A	2	80 %	CE	5 V	24 V	Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input	5 A	150 W	ITE (Commercial)
TDK-LAMBDA ZWD150PAF-0524/TL	-10 °C	70 °C	85 VAC	265 VAC	222 mm	85.1 mm	3.35 in	8.74 "	1.57 "	40 mm	Open Frame	Chassis Mount	3000 V	6 A	2	80 %	CE	5 V	24 V	Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input	5 A	150 W	ITE (Commercial)
TDK-LAMBDA ZWD150PAF-0524	-10 °C	70 °C	85 VAC	265 VAC	222 mm	85.1 mm	3.35 in	8.74 "	1.57 "	40 mm	Open Frame	Chassis Mount	3000 V	6 A	2	80 %	CE	5 V	24 V	Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input	5 A	150 W	ITE (Commercial)
TDK-LAMBDA ZWD150PAF-0524/J	-10 °C	70 °C	85 VAC	265 VAC	222 mm	85.1 mm	3.35 in	8.74 "	1.57 "	40 mm	Open Frame	Chassis Mount	3000 V	6 A	2	80 %	CE	5 V	24 V	Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input	5 A	150 W	ITE (Commercial)
