25_N-50-7-14/133_NE
ActiveHuber+Suhner, Inc.
25_N-50-7-14/133_NE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 25_N-50-7-14/133_NE |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-214 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 1000 VDC |
25_N-50 Series
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Body Material | Center Contact Material | Cable Group | Connector Type | Frequency - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Contact Termination | Housing Color | Mounting Feature | Body Finish | Impedance | Voltage Rating | Number of Ports | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper Brass | RD-316 | Female Socket Jack | 11 GHz | -65 ░C | 165 °C | Crimp | Crimp | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper Brass | 188 316 RG-174 | Female Socket Jack | 11 GHz | -65 ░C | 165 °C | Crimp | Crimp | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper | RG-405 | Female Socket Jack | 18 GHz | -65 ░C | 165 °C | Solder | Solder | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper | RG-214 | Female Socket Jack | 11 GHz | -65 ░C | 165 °C | Crimp | Crimp | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper | Female Socket Jack | 11 GHz | -65 ░C | 165 °C | Crimp | Crimp | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type | |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper | RG-213 | Female Socket Jack | 11 GHz | -65 ░C | 165 °C | Crimp | Crimp | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper | RG-58 | Female Socket Jack | 11 GHz | -65 ░C | 165 °C | Crimp | Crimp | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type |
Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | Beryllium Copper | 223 RG-142 | Female Socket Jack | 11 GHz | -65 ░C | 165 °C | Crimp | Crimp | Silver | Flange | White Bronze | 50 Ohms | 1000 VDC | 1 | N Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 20.39 | |
Description
General part information
25_N-50 Series

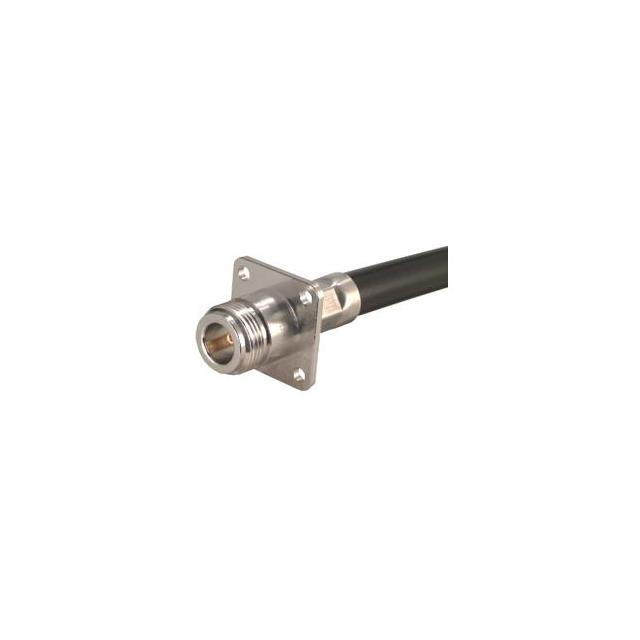

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
