PE45466

Active

Pasternack

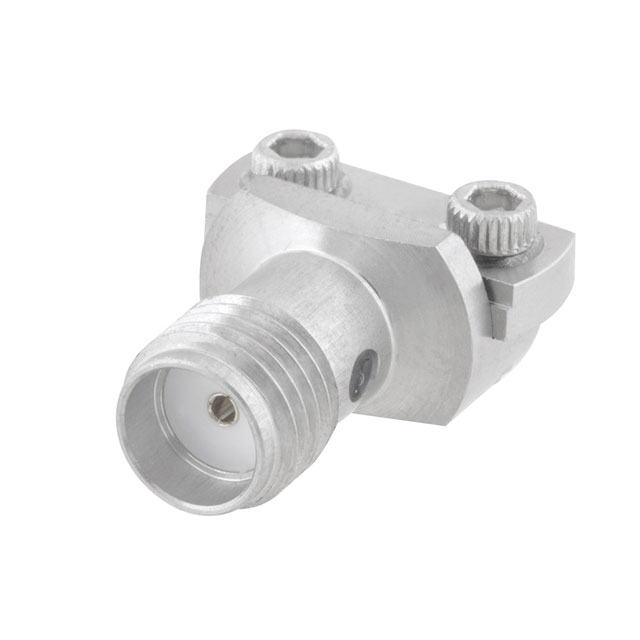

SMA(F) END LAUNCH MSTRP 0.010"

Search across all available documentation for this part.

Active

Pasternack

SMA(F) END LAUNCH MSTRP 0.010"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE45466	PE4546 Series

Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	SMA	SMA
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket, Male Pin
Contact Termination	Solder	Solder, Clamp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware	Mounting Hardware
Frequency - Max [Max]	26.5 GHz	26.5 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	-	Flange
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Clamp	Clamp, Screw

SMA(F) END LAUNCH MSTRP 0.010"

Part	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Housing Color	Dielectric Material	Body Material	Connector Style	Number of Ports	Center Contact Plating	Center Contact Material	Features	Mounting Type	Connector Type	Mating Cycles	Contact Termination	Frequency - Max [Max]	Mounting Feature
Pasternack PE45466	50 Ohms	125 °C	-40 °C	Clamp	Silver	Polytetrafluoroethylene (PTFE)	Stainless Steel	SMA	1	Gold	Beryllium Copper	Mounting Hardware	Board Edge, End Launch	Female Socket, Receptacle	500	Solder	26.5 GHz
Pasternack PE45465	50 Ohms	125 °C	-40 °C	Clamp	Silver	Polytetrafluoroethylene (PTFE)	Stainless Steel	SMA	1	Gold	Beryllium Copper	Mounting Hardware	Board Edge, End Launch	Female Socket, Receptacle	500	Solder	26.5 GHz
Pasternack PE45460	50 Ohms			Screw	Silver	Polytetrafluoroethylene (PTFE)	Stainless Steel	SMA	1	Gold	Brass	Mounting Hardware		Male Pin, Receptacle	500	Clamp	26.5 GHz	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder
