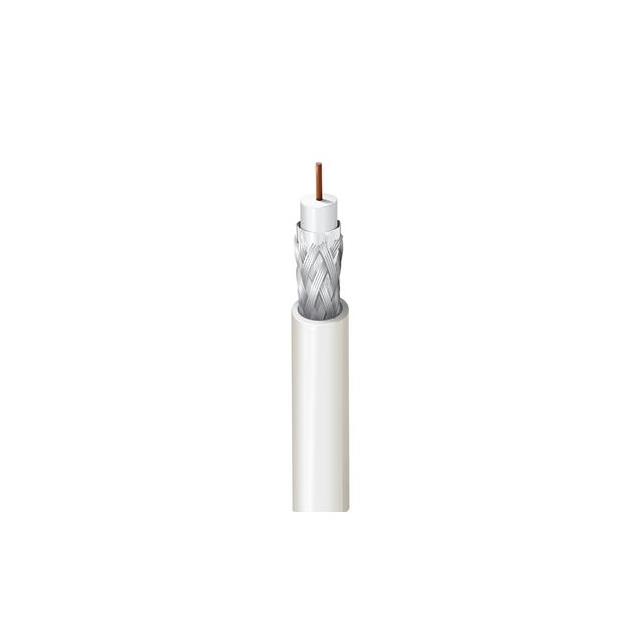

Specification	1530AP 8771000

Cable Group	RG-6
Cable Type	Plenum, Coaxial
Conductor Material	Copper Coated, Steel
Conductor Strand	Solid
Dielectric Diameter	0.17 in
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	75 Ohm
Jacket (Insulation) Diameter	0.235 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC)
Jacket Color	Natural
Length	1000 ft
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Shield Coverage	100%, 90%
Shield Material	Aluminum
Shield Type	Braid, Foil
Velocity of Propagation (VoP)	83 %
Wire Gauge	18 AWG

1530AP Series

Part	Shield Coverage	Conductor Material	Dielectric Material	Dielectric Diameter	Shield Material	Operating Temperature (Min)	Operating Temperature (Max)	Velocity of Propagation (VoP)	Length	Impedance	Wire Gauge	Cable Group	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Conductor Strand	Jacket Color	Shield Type	Cable Type
Belden Inc. 1530AP 8771000	100% 90%	Copper Coated Steel	Foam Fluorinated Ethylene Propylene (FFEP)	0.17 in	Aluminum	-20 °C	75 °C	83 %	1000 ft	75 Ohm	18 AWG	RG-6	Low Smoke Poly-Vinyl Chloride (LSPVC)	0.235 in	Solid	Natural	Braid Foil	Coaxial Plenum
