PA0009C

Active

Chip Quik Inc.

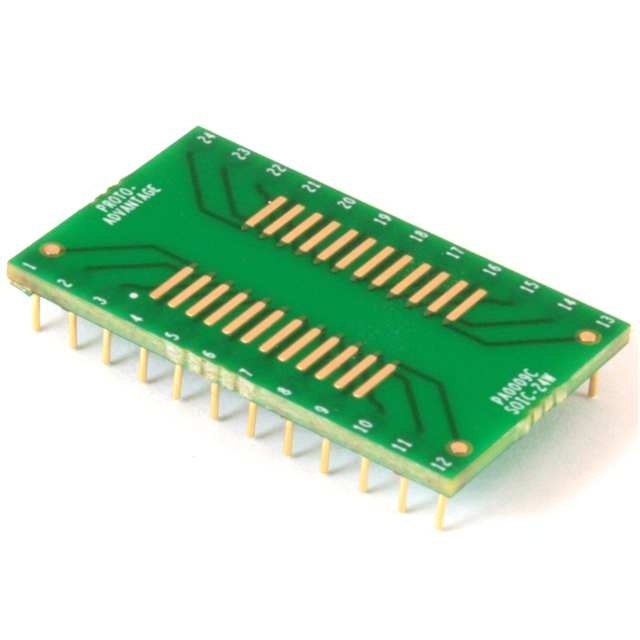

SOIC-24 TO DIP-24 SMT ADAPTER (1

Search across all available documentation for this part.

Active

Chip Quik Inc.

SOIC-24 TO DIP-24 SMT ADAPTER (1

Technical Specifications

Parameters and characteristics for this part

SOIC-24 TO DIP-24 SMT ADAPTER (1

Part	Proto Board Type	Pitch [x]	Pitch [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions	Package Accepted	Board Thickness	Board Thickness	Material
Chip Quik Inc. PA0009C	SMD to DIP	0.05 in	1.27 mm	17.78 mm	0.7 in	1.2 "	30.48 mm	24	SOIC	1.6 mm	0.063 in	FR4 Epoxy Glass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.29

General part information

SOIC-24 TO DIP-24 SMT ADAPTER (1

Technical documentation and resources

No documents available
