PGSA-2024A
ActiveEssentra Access Solutions

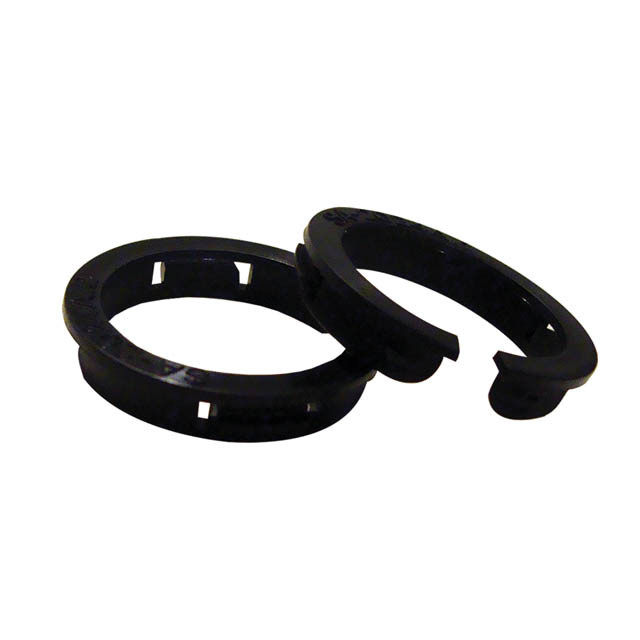

BUSHING SPLIT 0.768" NYLON BLACK
Deep-Dive with AI
Search across all available documentation for this part.
PGSA-2024A
ActiveEssentra Access Solutions
BUSHING SPLIT 0.768" NYLON BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PGSA-2024A |
|---|---|
| Bushing, Grommet Type | Bushing, Split |
| Color | Black |
| Diameter - Inside [diameter] | 19.5 mm |
| Diameter - Inside [diameter] | 0.768 in |
| Features | Snap-Mount |
| For Use With/Related Products | Wires, Cable |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Dimensions [diameter] | 0.945 in |
| Panel Cutout Dimensions [diameter] | 24 mm |
| Panel Thickness [Max] | 0.063 in |
| Panel Thickness [Max] | 1.6 mm |
| Panel Thickness [Min] | 0.039 in |
| Panel Thickness [Min] | 0.99 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
Description
General part information
PGSA Series
Circular - 0.945" (24.00mm) Bushing, Split 0.768" (19.50mm) Black
Documents
Technical documentation and resources
No documents available
