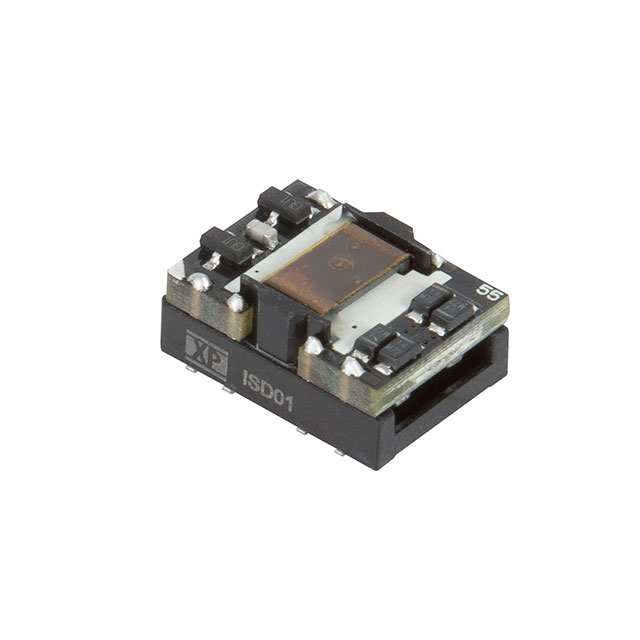

ISD0105D3V3
ObsoleteXP POWER
DC DC CONVERTER +/-3.3V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISD0105D3V3
ObsoleteXP POWER
DC DC CONVERTER +/-3.3V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISD0105D3V3 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 151 mA |
| Efficiency | 75 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [y] | 0.44 in |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [z] | 0.26 " |
| Size / Dimension [z] | 6.6 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | -3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ISD0105 Series
Isolated Module DC DC Converter 2 Output 3.3V -3.3V 151mA, 151mA 4.5V - 5.5V Input
