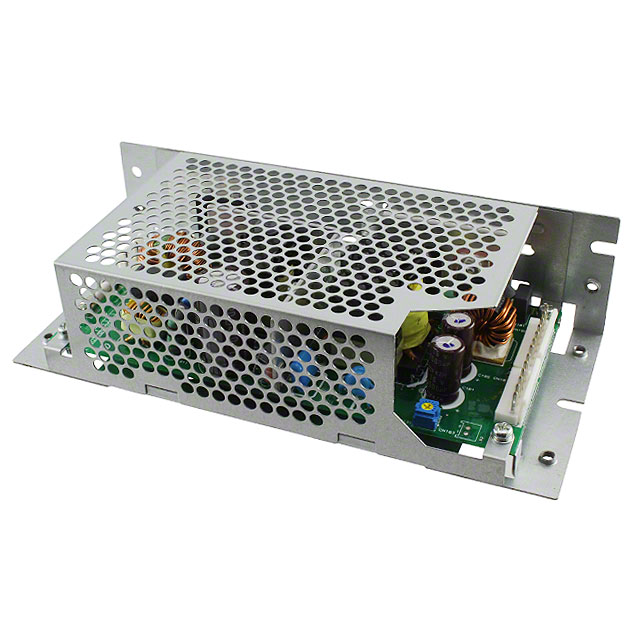

Specification	PJ-12V150WCNA

Applications	ITE (Commercial)
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	12.5 A
Efficiency	91 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	150 W
Size / Dimension Height	1.85 in
Size / Dimension Length	7.4 in
Size / Dimension Width	3.35 in
Type	Enclosed, Conformal Coated
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	12 V

PJ-12V150 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Features	Voltage - Isolation	Power (Watts)	Current - Output 1	Type	Number of Outputs	Voltage - Output 1	Applications	Mounting Type	Efficiency	Approval Agency	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum
Delta Electronics PJ-12V150WCNA	70 °C	-10 °C	7.4 in	3.35 in	1.85 in	Adjustable Output PFC Universal Input	3 kV	150 W	12.5 A	Conformal Coated Enclosed	1	12 V	ITE (Commercial)	Chassis Mount	91 %	CB CE cURus TUV	85 VAC	264 V
Delta Electronics PJ-12V150WBNA	70 °C	-10 °C	6.3 in	2.95 in	1.46 in	Adjustable Output PFC Universal Input	3 kV	150 W	12.5 A	Conformal Coated Open Frame	1	12 V	ITE (Commercial)	Chassis Mount	91 %	CB CE cURus TUV	85 VAC	264 V
Delta Electronics PJ-12V150WBRA	70 °C	-10 °C	6.3 in	2.95 in	1.46 in	Adjustable Output PFC Remote On/Off Universal Input	3 kV	150 W	12.5 A	Open Frame	1	12 V	ITE (Commercial)	Chassis Mount	91 %	CB CE cURus TUV	85 VAC	264 V
Delta Electronics PJ-12V150WCRA	70 °C	-10 °C	7.4 in	3.35 in	1.85 in	Adjustable Output PFC Remote On/Off Universal Input	3 kV	150 W	12.5 A	Enclosed	1	12 V	ITE (Commercial)	Chassis Mount	91 %	CB CE cURus TUV	85 VAC	264 V
