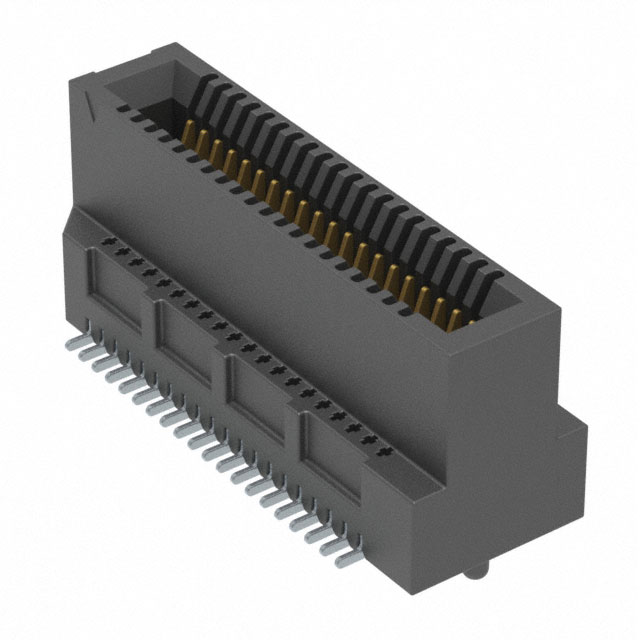

MEC8-120-01-S-DV-A

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 0.80 MM MINI EDGE CARD CONNECTOR, VERTICAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MEC8-120-01-S-DV-A

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 0.80 MM MINI EDGE CARD CONNECTOR, VERTICAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC8-120-01-S-DV-A

Card Thickness	0.039 in
Card Thickness	1 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

MEC8-120 Series

Part	Termination	Features	Material - Insulation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Material	Mounting Type	Gender	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Number of Rows	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Type
Samtec Inc. MEC8-120-01-S-DV-A	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.039 in	1 mm	2	Gold	Non Specified - Dual Edge	0.76 Ám	30 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-L-DV-K	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-SM-D-RA1-TR	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.76 Ám	30 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-S-DV-A-K	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.76 Ám	30 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-L-D-RA1	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount Right Angle	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-01-LM-DV-A	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.039 in	1 mm	2	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-S-DV-A-K-TR	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.76 Ám	30 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-L-DV-A-K	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-LM-D-RA1	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	40	Hairpin Bellows
Samtec Inc. MEC8-120-02-L-DV-A-TR	Solder	Board Guide	Liquid Crystal Polymer (LCP)	Black	-55 °C	125 °C	Dual	Phosphor Bronze	Surface Mount	Female	0.8 mm	0.031 in	0.062 in	1.57 mm	2	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	40	Hairpin Bellows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	78	$ 9.27
Sager	N/A	1	$ 6.34
		10	$ 5.93
		25	$ 5.47
		50	$ 5.15
		100	$ 4.79
		500	$ 4.44
		1000	$ 3.68
		2000	$ 3.08

Description

General part information

MEC8-120 Series

40 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
