SW1 NA002

Active

ALPHA WIRE

SW1 NATURAL 500 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

SW1 NATURAL 500 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SW1 NA002

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Non-Expanded [diameter]	1.55 mm
Diameter - Inside, Non-Expanded [diameter]	0.061 in
Diameter - Outside, Non-Expanded [diameter]	3.18 mm
Diameter - Outside, Non-Expanded [diameter]	0.125 in
Features	Solvent Resistant
Length [x]	500 '
Length [x]	152.4 m
Material	Polyethylene (PE), Halogen Free
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	0.032 in
Wall Thickness	0.81 mm

SW1 NATURAL 500 FT ROHS COMPLIANT: YES

Part	Color	Wall Thickness	Wall Thickness	Features	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Length [x]	Length [x]	Type Attributes	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material
ALPHA WIRE SW1 NA002	Natural	0.032 in	0.81 mm	Solvent Resistant	Abrasion Resistant	1.55 mm	0.061 in	Spiral Wrap	500 '	152.4 m	Harness	3.18 mm	0.125 in	-60 °C	88 °C	Polyethylene (PE), Halogen Free

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

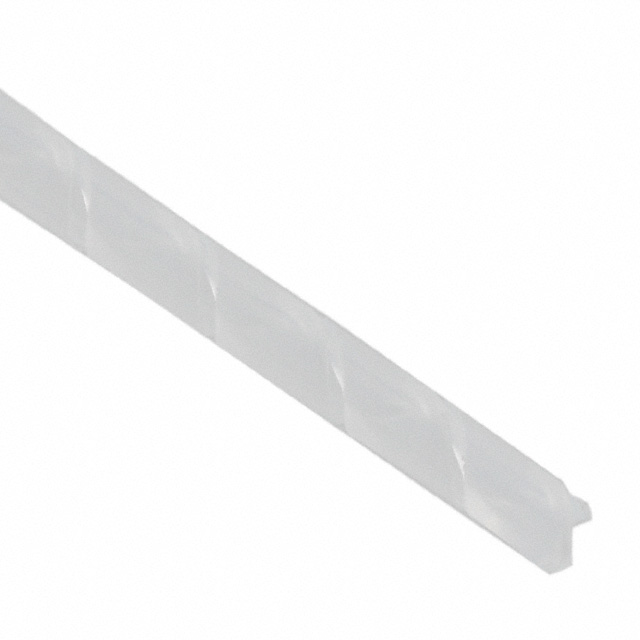

Spiral Wrap 0.125" (3.18mm) X 500' (152.40m) Natural
