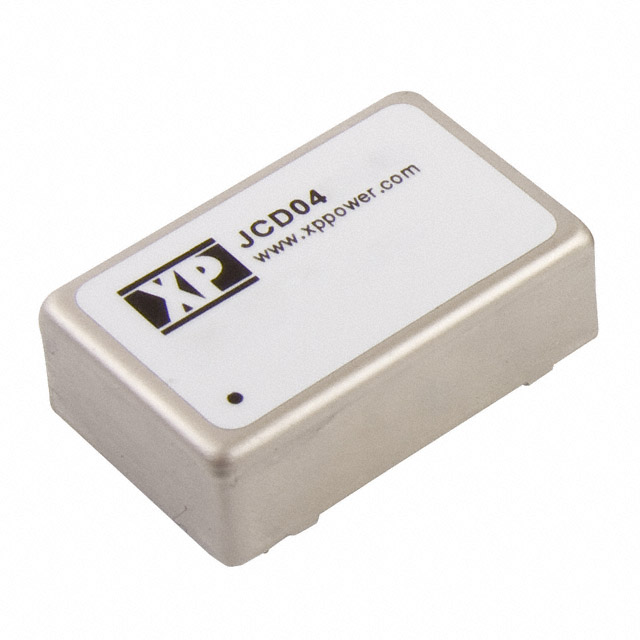

JCD0412S05

Active

XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 4 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Certificate of Conformity EN +1

JCD0412S05

Active

XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 4 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Certificate of Conformity EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JCD0412S05

Applications	ITE (Commercial)
Current - Output (Max) [Max]	800 mA
Efficiency	78 %
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 7 Leads
Power (Watts)	4 W
Size / Dimension [x]	1.25 "
Size / Dimension [x]	31.8 mm
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	10.4 mm
Size / Dimension [z]	0.41 "
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V

JCD0412 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Type	Voltage - Isolation	Applications	Efficiency	Number of Outputs	Package / Case	Standard Number	Voltage - Output 1	Features	Voltage - Input (Max) [Max]	Mounting Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 2
XP POWER JCD0412S05	100 °C	-40 °C	9 V	800 mA	Isolated Module	1.6 kV	ITE (Commercial)	78 %	1	24-DIP Module 7 Leads	62368-1	5 V	OCP OVP SCP	18 V	Through Hole	4 W	1.25 "	0.8 in	20.3 mm	31.8 mm	10.4 mm	0.41 "
XP POWER JCD0412D12	100 °C	-40 °C	9 V	166 mA	Isolated Module	1.6 kV	ITE (Commercial)	78 %	2	24-DIP Module 8 Leads	62368-1	12 V	OCP OVP SCP	18 V	Through Hole	4 W	1.25 "	0.8 in	20.3 mm	31.8 mm	10.4 mm	0.41 "	-12 V
XP POWER JCD0412D24	100 °C	-40 °C	9 V	83 mA	Isolated Module	1.6 kV	ITE (Commercial)	80 %	2	24-DIP Module 8 Leads	62368-1	24 V	OCP OVP SCP	18 V	Through Hole	4 W	1.25 "	0.8 in	20.3 mm	31.8 mm	10.4 mm	0.41 "	-24 V
XP POWER JCD0412S15	100 °C	-40 °C	9 V	266 mA	Isolated Module	1.6 kV	ITE (Commercial)	83 %	1	24-DIP Module 7 Leads	62368-1	15 V	OCP OVP SCP	18 V	Through Hole	4 W	1.25 "	0.8 in	20.3 mm	31.8 mm	10.4 mm	0.41 "
XP POWER JCD0412D03	100 °C	-40 °C	9 V	600 mA	Isolated Module	1.6 kV	ITE (Commercial)	76 %	2	24-DIP Module 8 Leads	62368-1	3.3 V	OCP OVP SCP	18 V	Through Hole	4 W	1.25 "	0.8 in	20.3 mm	31.8 mm	10.4 mm	0.41 "	-3.3 V
XP POWER JCD0412D05	100 °C	-40 °C	9 V	400 mA	Isolated Module	1.6 kV	ITE (Commercial)	78 %	2	24-DIP Module 8 Leads	62368-1	5 V	OCP OVP SCP	18 V	Through Hole	4 W	1.25 "	0.8 in	20.3 mm	31.8 mm	10.4 mm	0.41 "	-5 V
XP POWER JCD0412S12	100 °C	-40 °C	9 V	333 mA	Isolated Module	1.6 kV	ITE (Commercial)		1	24-DIP Module 7 Leads	62368-1	12 V	OCP OVP SCP	18 V	Through Hole	4 W	1.25 "	0.8 in	20.3 mm	31.8 mm	10.4 mm	0.41 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 20.35
		5	$ 19.74
		10	$ 19.13
		25	$ 18.32
		100	$ 17.09
Newark	Each	10	$ 19.13
		25	$ 18.32
		100	$ 17.09

Description

General part information

JCD0412 Series

Isolated Module DC DC Converter 1 Output 5V 800mA 9V - 18V Input
