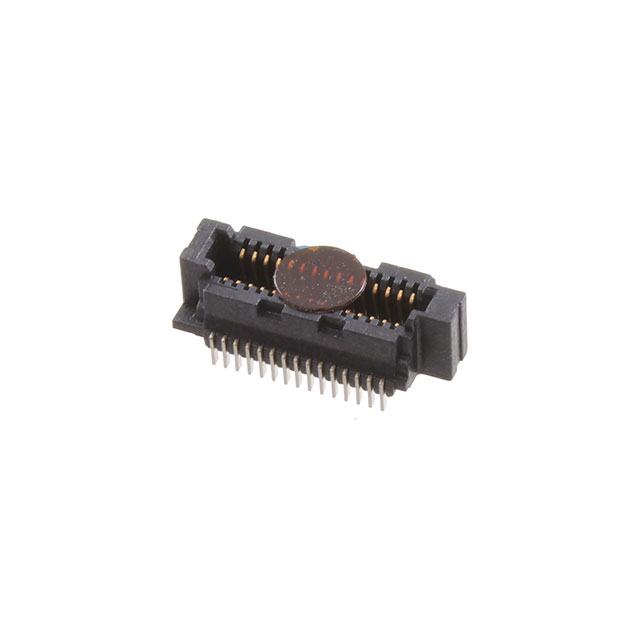

SS5-15-3.50-L-D-K-TR

Active

Samtec Inc.

0.50 MM RAZOR BEAM LP SLIM SOCK

Search across all available documentation for this part.

Active

Samtec Inc.

0.50 MM RAZOR BEAM LP SLIM SOCK

Technical Specifications

Parameters and characteristics for this part

Specification	SS5-15-3.50-L-D-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	3.35 mm
Height Above Board	0.132 in
Mated Stacking Heights	6 mm, 5.5 mm, 4.5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features
Samtec Inc. SS5-15-3.00-L-D-K-TR	2	30	0.5 mm	0.02 in	Surface Mount	4 mm 4.5 mm 5.5 mm	Outer Shroud Contacts Socket	2.85 mm	0.112 in	10 Áin	0.25 Ám	Gold	Pick and Place
Samtec Inc. SS5-15-3.50-L-D-K-TR	2	30	0.5 mm	0.02 in	Surface Mount	4.5 mm 5.5 mm 6 mm	Outer Shroud Contacts Socket	3.35 mm	0.132 in	10 Áin	0.25 Ám	Gold	Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
