SF7382-5SG-3ES
ActiveConxall/Switchcraft

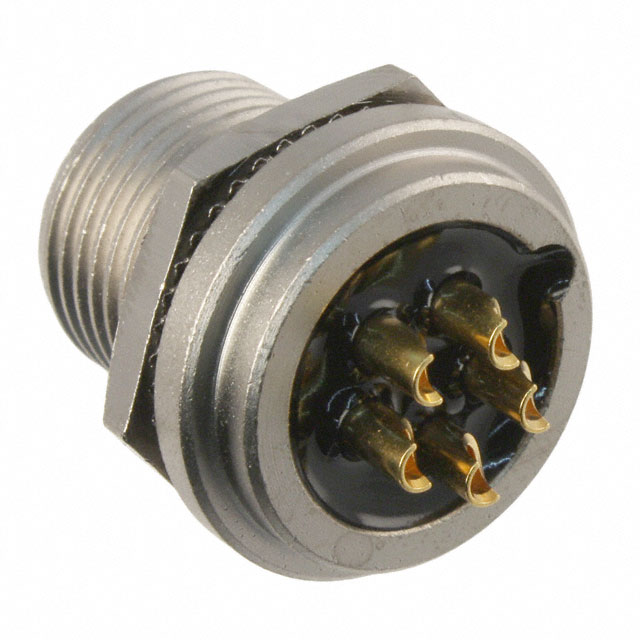

CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
SF7382-5SG-3ES
ActiveConxall/Switchcraft
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SF7382-5SG-3ES | SF7382 Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyester Resin | Polyester Resin |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | - | 2 - 6 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
SF7382 Series
CONN RCPT MALE 5P GOLD SLDR CUP
| Part | Contact Finish - Mating | Contact Material | Shielding | Primary Material | Mounting Feature | Orientation | Shell Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insert Material | Color | Shell Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft SF7382-5PG-3ES | Gold | Copper Alloy | Shielded | Metal | Bulkhead - Front Side Nut | Keyed | Copper Alloy | IP66/IP68 | -40 °C | 120 °C | Male Pins, Receptacle | Polyester Resin | Silver | Nickel | |
Conxall/Switchcraft SF7382-2SG-3ES | Gold | Copper Alloy | Shielded | Metal | Bulkhead - Front Side Nut | Keyed | Copper Alloy | IP66/IP68 | -40 °C | 120 °C | Receptacle, Female Sockets | Polyester Resin | Silver | Nickel | 2 |
Conxall/Switchcraft SF7382-2PG-3ES | Gold | Copper Alloy | Shielded | Metal | Bulkhead - Front Side Nut | Keyed | Copper Alloy | IP66/IP68 | -40 °C | 120 °C | Male Pins, Receptacle | Polyester Resin | Silver | Nickel | 2 |
Conxall/Switchcraft SF7382-5SG-3ES | Gold | Copper Alloy | Shielded | Metal | Bulkhead - Front Side Nut | Keyed | Copper Alloy | IP66/IP68 | -40 °C | 120 °C | Receptacle, Female Sockets | Polyester Resin | Silver | Nickel | |
Conxall/Switchcraft SF7382-4SG-3ES | Gold | Copper Alloy | Shielded | Metal | Bulkhead - Front Side Nut | Keyed | Copper Alloy | IP66/IP68 | -40 °C | 120 °C | Receptacle, Female Sockets | Polyester Resin | Silver | Nickel | 4 |
Conxall/Switchcraft SF7382-6PG-3ES | Gold | Copper Alloy | Shielded | Metal | Bulkhead - Front Side Nut | Keyed | Copper Alloy | IP66/IP68 | -40 °C | 120 °C | Male Pins, Receptacle | Polyester Resin | Silver | Nickel | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.18 | |
| 10 | $ 19.20 | |||
Description
General part information
SF7382 Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
