SF7382-2PG-3ES

Active

Conxall/Switchcraft

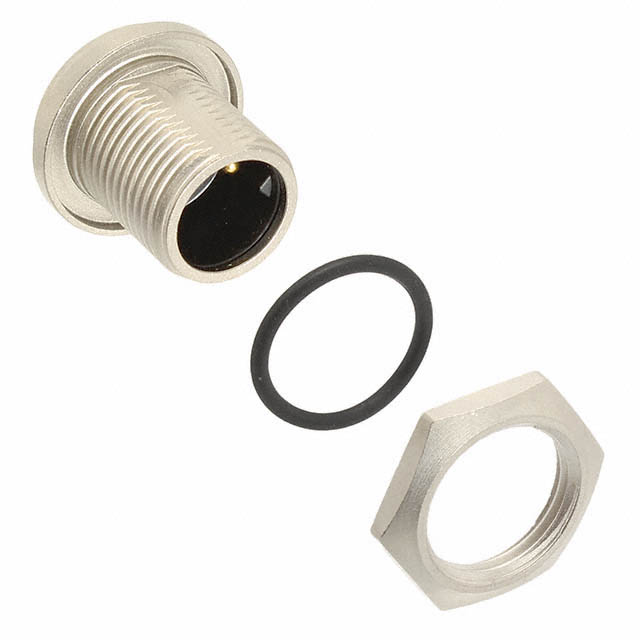

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

Specification	SF7382-2PG-3ES	SF7382 Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyester Resin	Polyester Resin
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	2	2 - 6
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded

Part	Contact Finish - Mating	Contact Material	Shielding	Primary Material	Mounting Feature	Orientation	Shell Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insert Material	Color	Shell Finish	Number of Positions
Conxall/Switchcraft SF7382-5PG-3ES	Gold	Copper Alloy	Shielded	Metal	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	-40 °C	120 °C	Male Pins, Receptacle	Polyester Resin	Silver	Nickel
Conxall/Switchcraft SF7382-2SG-3ES	Gold	Copper Alloy	Shielded	Metal	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	-40 °C	120 °C	Receptacle, Female Sockets	Polyester Resin	Silver	Nickel	2
Conxall/Switchcraft SF7382-2PG-3ES	Gold	Copper Alloy	Shielded	Metal	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	-40 °C	120 °C	Male Pins, Receptacle	Polyester Resin	Silver	Nickel	2
Conxall/Switchcraft SF7382-5SG-3ES	Gold	Copper Alloy	Shielded	Metal	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	-40 °C	120 °C	Receptacle, Female Sockets	Polyester Resin	Silver	Nickel
Conxall/Switchcraft SF7382-4SG-3ES	Gold	Copper Alloy	Shielded	Metal	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	-40 °C	120 °C	Receptacle, Female Sockets	Polyester Resin	Silver	Nickel	4
Conxall/Switchcraft SF7382-6PG-3ES	Gold	Copper Alloy	Shielded	Metal	Bulkhead - Front Side Nut	Keyed	Copper Alloy	IP66/IP68	-40 °C	120 °C	Male Pins, Receptacle	Polyester Resin	Silver	Nickel	6
