MSBP05MR-SBPFR-SD001
ActiveAmphenol LTW

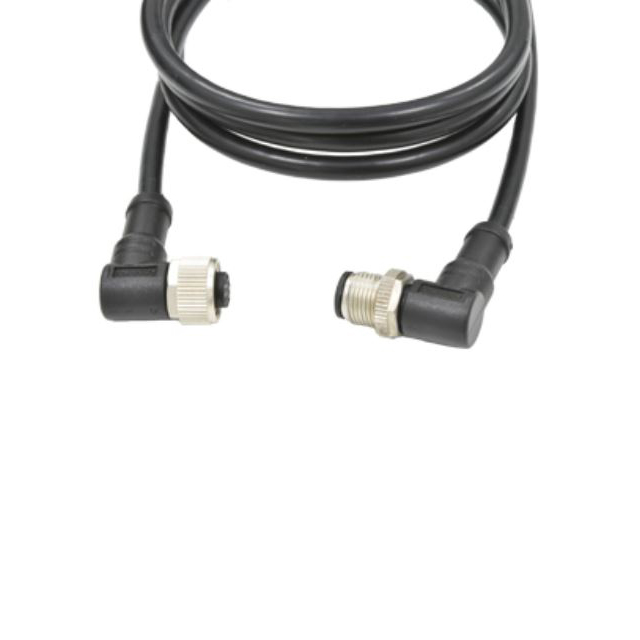

M SERIES SENSOR CONNECTOR, M12, B CODE, PLASTIC, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSBP05MR-SBPFR-SD001
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, M12, B CODE, PLASTIC, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSBP05MR-SBPFR-SD001 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | B |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle, Right Angle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Orientation | B |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug, Right Angle |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP68, IP69K |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
MSBP05MR Series
| Part | 1st Connector Mounting Type | 1st Connector Number of Positions Loaded | Assembly Configuration | 2nd Connector Gender | 2nd Connector Type | 2nd Connector Orientation | 2nd Connector Mounting Type | Shielding | Length [x] | Length [x] | 1st Connector Shell Size - Insert | Cable Type | 1st Connector Gender | 1st Connector Orientation | 2nd Connector Number of Positions | 1st Connector Number of Positions | Usage | Cable Material | Ingress Protection | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 1st Connector Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Free Hanging (In-Line) | All | Standard | Female Sockets | Plug Right Angle | B | Free Hanging (In-Line) | Unshielded | 1.64 ft | 500 mm | M12 | Round | Male Pins | B | 5 | 5 | Industrial Environments | Polyurethane (PUR) | IP68 IP69K | All | M12 | Receptacle Right Angle | Black |
Amphenol LTW | Free Hanging (In-Line) | All | Standard | Female Sockets | Plug Right Angle | B | Free Hanging (In-Line) | Unshielded | 3.28 ft | 1 m | M12 | Round | Male Pins | B | 5 | 5 | Industrial Environments | Polyvinyl Chloride (PVC) | IP68 IP69K | All | M12 | Receptacle Right Angle | Black |
Amphenol LTW | Free Hanging (In-Line) | All | Standard | Receptacle Right Angle | B | Free Hanging (In-Line) | Unshielded | 3.28 ft | 1 m | M12 | Round | Male Pins | B | 5 | 5 | Industrial Environments | Polyvinyl Chloride (PVC) | IP68 IP69K | All | M12 | Receptacle Right Angle | Black | |
Amphenol LTW | Free Hanging (In-Line) | All | Standard | Receptacle Right Angle | B | Free Hanging (In-Line) | Unshielded | 1.64 ft | 500 mm | M12 | Round | Male Pins | B | 5 | 5 | Industrial Environments | Polyvinyl Chloride (PVC) | IP68 IP69K | All | M12 | Receptacle Right Angle | Black | |
Amphenol LTW | Free Hanging (In-Line) | All | Standard | Receptacle Right Angle | B | Free Hanging (In-Line) | Unshielded | 3.28 ft | 1 m | M12 | Round | Male Pins | B | 5 | 5 | Industrial Environments | Polyurethane (PUR) | IP68 IP69K | All | M12 | Receptacle Right Angle | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MSBP05MR Series
Circular Cable Assembly Unshielded 3.28' (1.00m)
