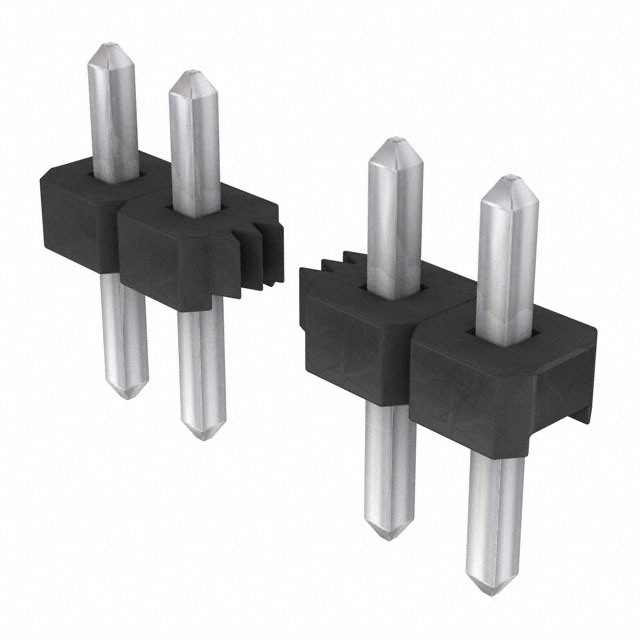

TLW-106-06-T-S

Active

Samtec Inc.

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TLW Thru Hole Footprint

TLW-106-06-T-S

Active

Samtec Inc.

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet TLW Thru Hole Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLW-106-06-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TLW-106 Series

Part	Termination	Contact Material	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Style	Number of Positions Loaded	Fastening Type	Connector Type	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Insulation Material	Contact Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post
Samtec Inc. TLW-106-06-T-S	Solder	Phosphor Bronze	1	7.62 mm	0.3 in	0.135 in	3.43 mm	6	Black	0.1 in	2.54 mm	5.2 A	Tin	0.06 in	1.52 mm	Board to Board Cable	All	Push-Pull	Header	Unshrouded	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole
Samtec Inc. TLW-106-01-T-D-RA	Solder	Phosphor Bronze	2			0.12 in	3.05 mm	12	Black	0.1 in	2.54 mm	5.2 A	Tin			Board to Board Cable	All	Push-Pull	Header	Unshrouded	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole Right Angle	2.54 mm	0.1 in	0.23 in	5.84 mm	0.197 in	5 mm
Samtec Inc. TLW-106-06-T-D	Solder	Phosphor Bronze	2	7.62 mm	0.3 in	0.135 in	3.43 mm	12	Black	0.1 in	2.54 mm	5.2 A	Tin	0.06 in	1.52 mm	Board to Board Cable	All	Push-Pull	Header	Unshrouded	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	2.54 mm	0.1 in
Samtec Inc. TLW-106-06-L-S	Solder	Phosphor Bronze	1	7.62 mm	0.3 in	0.135 in	3.43 mm	6	Black	0.1 in	2.54 mm	5.2 A		0.06 in	1.52 mm	Board to Board Cable	All	Push-Pull	Header	Unshrouded	125 °C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole							Gold
Samtec Inc. TLW-106-01-G-D-RA	Solder	Phosphor Bronze	2			0.12 in	3.05 mm	12	Black	0.1 in	2.54 mm	5.2 A	Gold			Board to Board Cable	All	Push-Pull	Header	Unshrouded	125 °C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole Right Angle	2.54 mm	0.1 in	0.23 in	5.84 mm	0.197 in	5 mm	Gold	Flash	10 çin	0.25 çm
Samtec Inc. TLW-106-05-G-D-08	Solder	Phosphor Bronze	2	8.51 mm	0.335 in			12	Black	0.1 in	2.54 mm	5.2 A	Gold	0.06 in	1.52 mm	Board to Board Cable		Push-Pull	Header	Unshrouded	125 °C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	2.54 mm	0.1 in					Gold	Flash	10 çin	0.25 çm	11	4.32 mm	0.17 in
Samtec Inc. TLW-106-05-G-D	Solder	Phosphor Bronze	2	8.51 mm	0.335 in			12	Black	0.1 in	2.54 mm	5.2 A	Gold	0.06 in	1.52 mm	Board to Board Cable	All	Push-Pull	Header	Unshrouded	125 °C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	2.54 mm	0.1 in					Gold	Flash	10 çin	0.25 çm		4.32 mm	0.17 in
Samtec Inc. TLW-106-05-G-D-01	Solder	Phosphor Bronze	2	8.51 mm	0.335 in			12	Black	0.1 in	2.54 mm	5.2 A	Gold	0.06 in	1.52 mm	Board to Board Cable		Push-Pull	Header	Unshrouded	125 °C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole	2.54 mm	0.1 in					Gold	Flash	10 çin	0.25 çm	11	4.32 mm	0.17 in
Samtec Inc. TLW-106-01-G-S-RA	Solder	Phosphor Bronze	1			0.12 in	3.05 mm	6	Black	0.1 in	2.54 mm	5.2 A	Gold	0.098 in	2.5 mm	Board to Board Cable	All	Push-Pull	Header	Unshrouded	125 °C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole Right Angle			0.23 in	5.84 mm			Gold	Flash	10 çin	0.25 çm
Samtec Inc. TLW-106-06-G-S	Solder	Phosphor Bronze	1	7.62 mm	0.3 in	0.135 in	3.43 mm	6	Black	0.1 in	2.54 mm	5.2 A	Gold	0.06 in	1.52 mm	Board to Board Cable	All	Push-Pull	Header	Unshrouded	125 °C	-55 °C	Square	Liquid Crystal Polymer (LCP)	Male Pin	Through Hole							Gold	Flash	10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.07
		10	$ 0.90
		100	$ 0.81
		500	$ 0.66
		1000	$ 0.59
		5000	$ 0.52
		10000	$ 0.49

Description

General part information

TLW-106 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

TLW Thru Hole Footprint

Datasheet
