150226-2020-RB-WD

Active

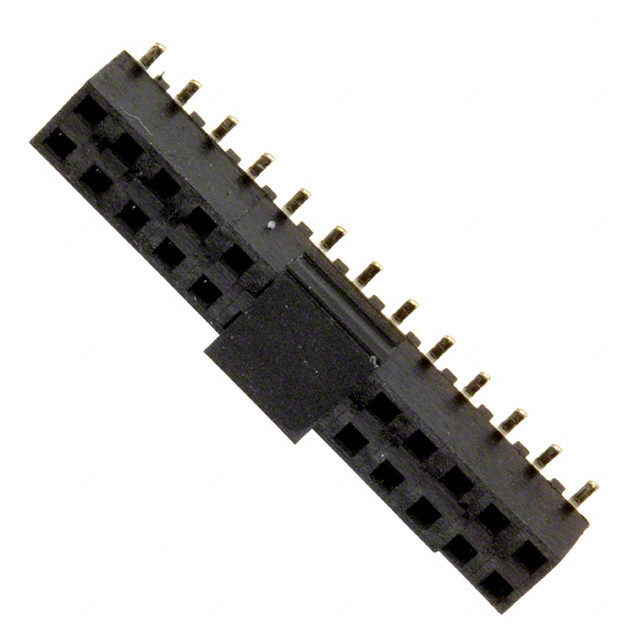

CONN RCPT 26POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

CONN RCPT 26POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150226-2020-RB-WD	150226 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.54 mm
Contact Length - Post	-	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Board Guide	Pick and Place, Board Guide
Insulation Color	Black	Black
Insulation Height	4.65 mm	4.5 - 4.65 mm
Insulation Height	0.183 in	0.177 - 0.183 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Positions	26	26
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

2MM 2MM DOUBLE ROW TIN 1A -55℃~+105℃ 500V 26P STRAIGHT 4.5MM PLUGIN,P=2MM FEMALE HEADERS ROHS

Part	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Voltage Rating	Fastening Type	Contact Material	Material Flammability Rating	Number of Rows	Connector Type	Mounting Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Number of Positions	Contact Type	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Style	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Height	Insulation Height	Features
3M 150226-6002-RB	2.54 mm	0.1 in	200 µin	5.08 µm	Gold	500 V	Push-Pull	Copper Alloy	UL94 V-0	2	Receptacle	Through Hole	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	Black	26	Female Socket	Tin	Square	All	Board to Board, Cable	0.079 in	2 mm	105 ░C	-55 °C	Solder	0.177 in	4.5 mm
3M 150226-2020-RB-WD			200 µin	5.08 µm	Gold	500 V	Push-Pull	Copper Alloy	UL94 V-0	2	Receptacle	Surface Mount	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	Black	26	Female Socket	Tin	Square	All	Board to Board, Cable	0.079 in	2 mm	105 ░C	-55 °C	Solder	0.183 in	4.65 mm	Board Guide, Pick and Place
3M 150226-6002-TB	2.54 mm	0.1 in	200 µin	5.08 µm	Gold	500 V	Push-Pull	Copper Alloy	UL94 V-0	2	Receptacle	Through Hole	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	Black	26	Female Socket	Tin-Lead	Square	All	Board to Board, Cable	0.079 in	2 mm	105 ░C	-55 °C	Solder	0.177 in	4.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.20
	Digi-Reel®	1	$ 3.20
	Tape & Reel (TR)	1950	$ 2.42

General part information

26 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
