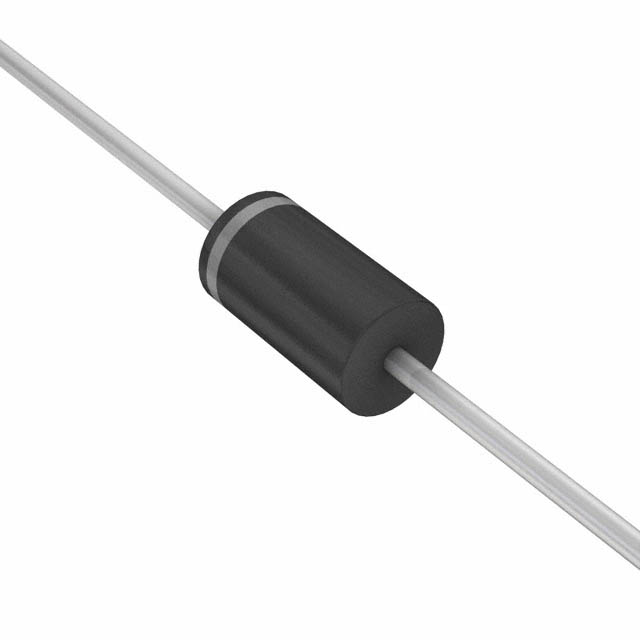

1.5KA13AHE3/54

Obsolete

Vishay General Semiconductor - Diodes Division

TVS DIODE 11.1VWM 18.2VC 1.5KA

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

TVS DIODE 11.1VWM 18.2VC 1.5KA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

18.2V Clamp 82.4A Ipp Tvs Diode Through Hole 1.5KA

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1.5KA13AHE3/54	1.5KA13 Series

Current - Peak Pulse (10/1000µs)	82.4 A	78.9 - 82.4 A
Grade	Automotive	Automotive
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	185 °C	185 °C
Operating Temperature [Min]	-65 °C	-65 °C
Package / Case	Axial, DO-27, DO-201AA	Axial, DO-27, DO-201AA
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Qualification	AEC-Q101	AEC-Q101
Supplier Device Package	1.5 KA	1.5 KA
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	12.4 V	11.7 - 12.4 V
Voltage - Clamping (Max) @ Ipp	18.2 V	18.2 V
Voltage - Clamping (Max) @ Ipp	-	19 V
Voltage - Reverse Standoff (Typ)	11.1 V	10.5 - 11.1 V

TVS DIODE 10.5VWM 19VC 1.5KA

Part	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Qualification	Voltage - Breakdown (Min) [Min]	Grade	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Mounting Type	Type	Power - Peak Pulse	Power - Peak Pulse	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp
Vishay General Semiconductor - Diodes Division 1.5KA13HE3/73	1	78.9 A	AEC-Q101	11.7 V	Automotive	19 V	Axial, DO-201AA, DO-27	Through Hole	Zener	1.5 kW	1500 W	1.5 KA	10.5 V	185 °C	-65 °C
Vishay General Semiconductor - Diodes Division 1.5KA13HE3/54	1	78.9 A	AEC-Q101	11.7 V	Automotive	19 V	Axial, DO-201AA, DO-27	Through Hole	Zener	1.5 kW	1500 W	1.5 KA	10.5 V	185 °C	-65 °C
Vishay General Semiconductor - Diodes Division 1.5KA13AHE3/54	1	82.4 A	AEC-Q101	12.4 V	Automotive		Axial, DO-201AA, DO-27	Through Hole	Zener	1.5 kW	1500 W	1.5 KA	11.1 V	185 °C	-65 °C	18.2 V
