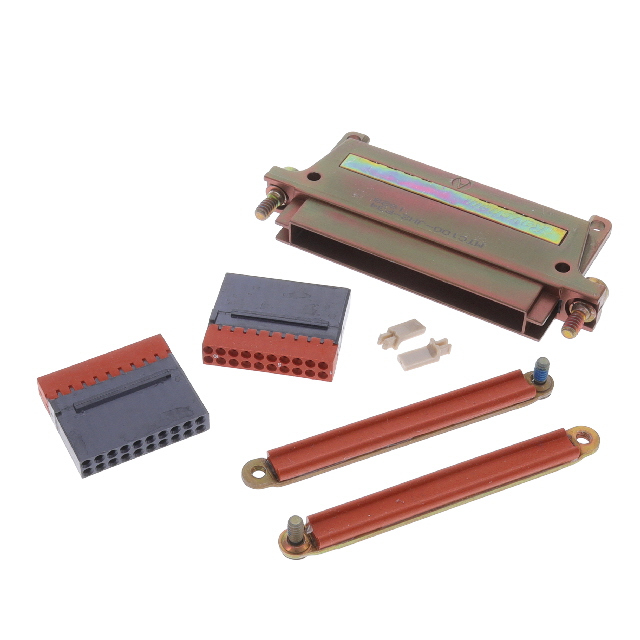

MTCPK2PJC22SS

Active

TE Connectivity Aerospace, Defense and Marine

MTCPK2PJC22SS

Deep-Dive with AI

Search across all available documentation for this part.

MTCPK2PJC22SS

Active

TE Connectivity Aerospace, Defense and Marine

MTCPK2PJC22SS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 668.33
		10	$ 581.31

Description

General part information

MTCP Series

Connector Backshell For MTC Series

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MTCPK2PJC22SS	MTCP Series

	-	-
Accessory Type	Backshell	Insert, Backshell
Cable Termination	-	Crimp
Color	-	Black
Connector Type	-	Plug, Receptacle
Contact Finish	-	Gold
Contact Termination	-	Crimp
Contact Type	-	Male Pin, Female Socket, Pin
Fastening Type	-	Push-Pull, Locking Ramp, Latch Lock
Features	Cable Clamp	Cable Clamp, Cap (Cover)
Features	-	16 - 22 AWG
Features	-	22 AWG
Features	-	16 AWG
For Use With/Related Products	MTC Series	MTCP Series, MTC Series
Insulation Material	-	Thermoplastic
Mounting Type	-	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	-	10 - 40
Number of Rows	-	1 - 2
Operating Temperature	-	-65 ░C
Operating Temperature	-	125 - 150 °C
Pitch	-	1.27 - 5.03 mm
Pitch	-	0.05 - 0.198 in
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Wire Type	-	Discrete

MTCP Series

I/O CONN

...

Part	Connector Type	Number of Rows	Cable Termination	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Mounting Type	Contact Termination	Note	For Use With/Related Products	Accessory Type	Features	Features	Contact Finish	Fastening Type	Wire Type	Insulation Material
TE Connectivity Aerospace, Defense and Marine MTCPQKT2P26PGAD	Plug	2	Crimp	40	Male Pin	2.54 mm	0.1 in
TE Connectivity Aerospace, Defense and Marine MTCP-122-20S-023		2		20	Female Socket			0.1 in	2.54 mm	Free Hanging (In-Line)	Crimp	Contacts Not Included
TE Connectivity Aerospace, Defense and Marine MTCPK2PJC22PP													MTCP Series	Insert	22 AWG
TE Connectivity Aerospace, Defense and Marine MTCPK2PJC22SS													MTC Series	Backshell		Cable Clamp
TE Connectivity Aerospace, Defense and Marine MTCPQKT1P2PGBD	Plug	2	Crimp	20	Male Pin	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)						Cable Clamp	Gold	Push-Pull	Discrete
TE Connectivity Aerospace, Defense and Marine MTCPQKT1P2SGAC	Plug	2	Crimp	20	Female Socket	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)						Cable Clamp	Gold	Push-Pull	Discrete
TE Connectivity Aerospace, Defense and Marine MTCPQKT2P26SGDB	Plug	2	Crimp	40	Female Socket	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)						Cable Clamp	Gold	Push-Pull	Discrete
TE Connectivity Aerospace, Defense and Marine MTCP-122-20P1-001		2		20	Male Pin					Free Hanging (In-Line)	Crimp	Contacts Not Included						Locking Ramp		Thermoplastic
TE Connectivity Aerospace, Defense and Marine MTCPQKT2P22PFAA	Plug	2	Crimp	40	Male Pin	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)						Cable Clamp	Gold	Push-Pull	Discrete
TE Connectivity Aerospace, Defense and Marine MTCPQKT1R2SGBA	Receptacle	2	Crimp	20	Female Socket	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)						Cable Clamp	Gold	Push-Pull	Discrete
