AT-K-26-6-B/500

Active

Assmann WSW Components

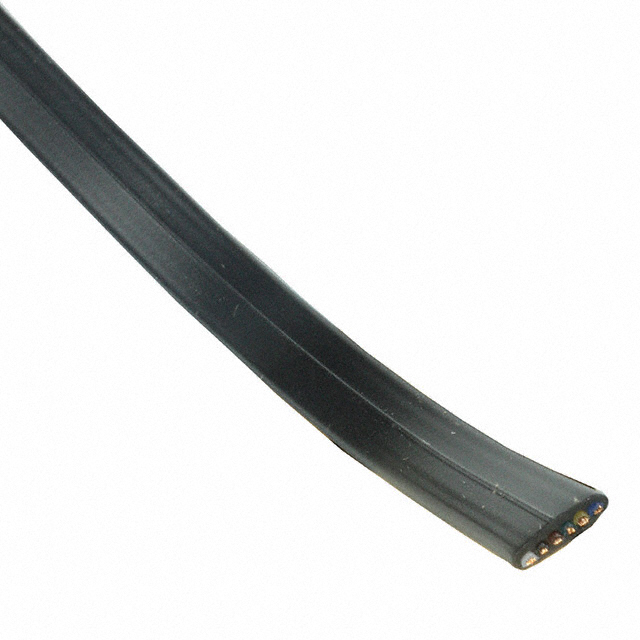

CABLE MOD FLAT 6COND BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT-K-26-6-B/500

Active

Assmann WSW Components

CABLE MOD FLAT 6COND BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT-K-26-6-B/500

Cable Height	0.097 in
Cable Height	2.46 mm
Cable Type	Straight
Cable Width	0.267 in
Cable Width	6.8 mm
Conductor Material	Copper, Bare
Conductor Strand [x]	7
Conductor Strand [y]	0.0063 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Shielding	Unshielded
Wire Gauge	26 AWG

AT-K-26 Series

Part	Jacket (Insulation) Material	Shielding	Cable Width	Cable Width	Jacket Color	Conductor Material	Cable Height	Cable Height	Conductor Strand [x]	Conductor Strand [y]	Length [x]	Length	Wire Gauge	Voltage	Cable Type	Number of Conductors	Cable Width	Length	Length [x]
Assmann WSW Components AT-K-26-8-S/100	Poly-Vinyl Chloride (PVC)	Unshielded	0.346 in	8.8 mm	Silver	Copper Bare	0.097 in	2.46 mm	7	0.0063 in	100 ft	30.5 m	26 AWG	30 V	Straight	8
Assmann WSW Components AT-K-26-6-S/1000	Poly-Vinyl Chloride (PVC)	Unshielded		0.267 in	Silver	Copper Bare	0.097 in	2.46 mm	7	0.0063 in		304.8 m	26 AWG		Straight	6	6.8 mm	1000 ft
Assmann WSW Components AT-K-26-8-B/100	Poly-Vinyl Chloride (PVC)	Unshielded	0.346 in	8.8 mm	Black	Copper Bare	0.097 in	2.46 mm	7	0.0063 in	100 ft	30.5 m	26 AWG	30 V	Straight	8
Assmann WSW Components AT-K-26-6-B/500	Poly-Vinyl Chloride (PVC)	Unshielded		0.267 in	Black	Copper Bare	0.097 in	2.46 mm	7	0.0063 in	500 '		26 AWG		Straight	6	6.8 mm		152.4 m
Assmann WSW Components AT-K-26-8-W/100	Poly-Vinyl Chloride (PVC)	Unshielded	0.346 in	8.8 mm		Copper Bare	0.097 in	2.46 mm	7	0.0063 in	100 ft	30.5 m	26 AWG	30 V	Straight	8
Assmann WSW Components AT-K-26-4-B/500	Poly-Vinyl Chloride (PVC)	Unshielded	0.189 in	4.8 mm	Black	Copper Bare	0.097 in	2.46 mm	7	0.0063 in	500 '		26 AWG		Straight	4			152.4 m
Assmann WSW Components AT-K-26-10-B/1000	Poly-Vinyl Chloride (PVC)	Unshielded	0.425 in	10.8 mm	Black	Copper Bare	0.097 in	2.46 mm	7	0.0063 in		304.8 m	26 AWG		Straight	10		1000 ft
Assmann WSW Components AT-K-26-8-S/1000	Poly-Vinyl Chloride (PVC)	Unshielded	0.346 in	8.8 mm	Silver	Copper Bare	0.097 in	2.46 mm	7	0.0063 in		304.8 m	26 AWG	30 V	Straight	8		1000 ft
Assmann WSW Components AT-K-26-6-W/500	Poly-Vinyl Chloride (PVC)	Unshielded		0.267 in		Copper Bare	0.097 in	2.46 mm	7	0.0063 in	500 '		26 AWG		Straight	6	6.8 mm		152.4 m
Assmann WSW Components AT-K-26-6-W/100	Poly-Vinyl Chloride (PVC)	Unshielded		0.267 in		Copper Bare	0.097 in	2.46 mm	7	0.0063 in	100 ft	30.5 m	26 AWG		Straight	6	6.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.16
		1000	$ 0.15
		2500	$ 0.14
		5000	$ 0.14
		12500	$ 0.13
		25000	$ 0.12
		50000	$ 0.12

Description

General part information

AT-K-26 Series

6 Conductor Modular Straight Cable Black 500' (152.40m)
