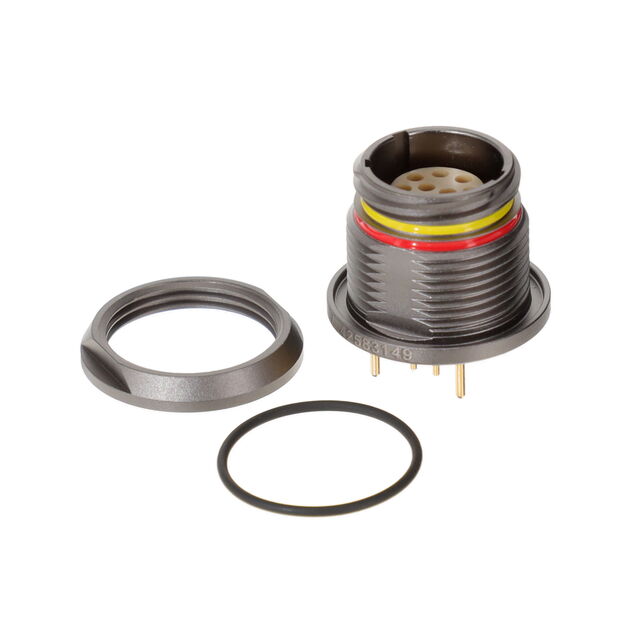

HEP.2M.310.XLNP

Active

LEMO

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HEP.2M.310.XLNP

Active

LEMO

CONN RCPT FMALE 10POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 114.85
		10	$ 105.39
		25	$ 101.34
		50	$ 97.96
		100	$ 92.56

Description

General part information

HEP.2M Series

10 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEP.2M.310.XLNP	HEP.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Color	Gray	Gray, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	8 A	4 - 8 A
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	10	10 - 19
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation	P	P
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	310	310 - 319
Shielding	Shielded	Shielded
Termination	Solder	Solder

HEP.2M Series

CONN RCPT FMALE 19POS GOLD SLDR

Part	Primary Material	Ingress Protection	Mounting Type	Shielding	Shell Size - Insert	Features	Mounting Feature	Color	Contact Finish - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Number of Positions	Shell Material	Insert Material	Applications	Current Rating (Amps)	Contact Material
LEMO HEP.2M.319.XLNP	Metal	IP68 - Dust Tight, Waterproof	Panel Mount, Through Hole	Shielded	319	Potted	Bulkhead - Front Side Nut	Gray	Gold	Solder	-20 C	80 C	P	Receptacle, Female Sockets	59 Áin	1.5 Ám	Nickel	19	Aluminum Alloy	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	4 A	Bronze
LEMO HEP.2M.319.CLNP	Metal	IP68 - Dust Tight, Waterproof	Panel Mount, Through Hole	Shielded	319	Potted	Bulkhead - Front Side Nut	Silver	Gold	Solder	-20 C	80 C	P	Receptacle, Female Sockets	59 Áin	1.5 Ám	Chrome	19	Brass	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	4 A	Bronze
LEMO HEP.2M.310.XLNP	Metal	IP68 - Dust Tight, Waterproof	Panel Mount, Through Hole	Shielded	310	Potted	Bulkhead - Front Side Nut	Gray	Gold	Solder	-20 C	80 C	P	Receptacle, Female Sockets	59 Áin	1.5 Ám	Nickel	10	Aluminum Alloy	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	8 A	Bronze
LEMO HEP.2M.312.XLNP	Metal	IP68 - Dust Tight, Waterproof	Panel Mount, Through Hole	Shielded	312	Potted	Bulkhead - Front Side Nut	Gray	Gold	Solder	-20 C	80 C	P	Receptacle, Female Sockets	59 Áin	1.5 Ám	Nickel	12	Aluminum Alloy	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	7 A	Bronze
