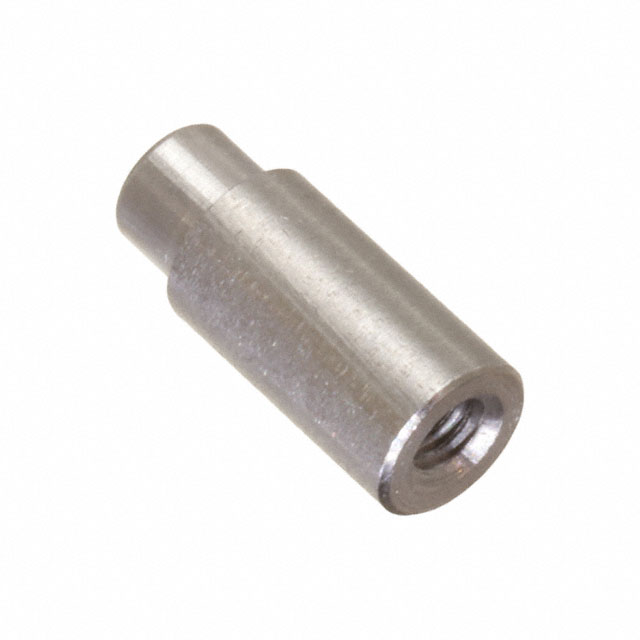

M1579-B-4007-AL
ActiveRAF Electronic Hardware
8MM RD X 12MM X M4 THD
Deep-Dive with AI
Search across all available documentation for this part.
M1579-B-4007-AL
ActiveRAF Electronic Hardware
8MM RD X 12MM X M4 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1579-B-4007-AL |
|---|---|
| Between Board Height | 0.472 in |
| Between Board Height | 12 mm |
| Diameter - Inside [diameter] | 5.1 mm |
| Diameter - Inside [diameter] | 0.201 in |
| Diameter - Outside [diameter] | 8 mm |
| Diameter - Outside [diameter] | 0.315 in |
| Gender | Swage, Female |
| Length - Overall | 14.7 mm |
| Length - Overall | 0.579 in |
| Material | Aluminum |
| Screw, Thread Size | M4x0.7 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.03 | |
| 5 | $ 1.69 | |||
| 10 | $ 1.52 | |||
| 25 | $ 1.36 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.12 | |||
| 1000 | $ 1.02 | |||
Description
General part information
M1579 Series
Round Standoff Threaded M4x0.7 Aluminum 0.472" (12.00mm)
