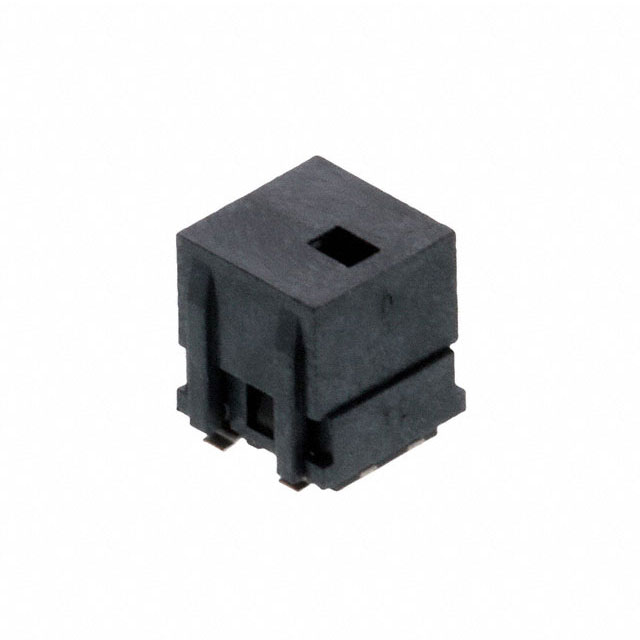

JJFV0UG380NOPMRTR

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECT SPST-NO 0.001A 5V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECT SPST-NO 0.001A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Termination Style	Operating Position	Operating Position	Features	Current Rating (Amps)	Circuit	Electrical Life	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Mechanical Life	Mounting Type	Actuator Type	Switch Function	Operating Position [custom]	Operating Position [custom]
TE Connectivity Raychem Cable Protection JJFV0UG530NOPMRTR	0.012 in	0.3 mm	Gull Wing	0.197 in	5 mm	Board Guide	1 mA	SPST-NO	100000 Cycles	5 V	-10 °C	60 °C	40 gf	100000 Cycles	Surface Mount	Angled Toggle (Detector)	Off-Mom
TE Connectivity Raychem Cable Protection JJFV0UG380NOPMRTR	0.012 in	0.3 mm	Gull Wing			Board Guide	1 mA	SPST-NO	100000 Cycles	5 V	-10 °C	60 °C	40 gf	100000 Cycles	Surface Mount	Angled Toggle (Detector)	Off-Mom	3.5 mm	0.138 in
TE Connectivity Raychem Cable Protection JJFV0UG530NONPRTR	0.012 in	0.3 mm	Gull Wing	0.197 in	5 mm		1 mA	SPST-NO	100000 Cycles	5 V	-10 °C	60 °C	40 gf	100000 Cycles	Surface Mount	Angled Toggle (Detector)	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Surface Mount
