2108-4-00-44-00-00-07-0

Active

Mill-Max Manufacturing Corp.

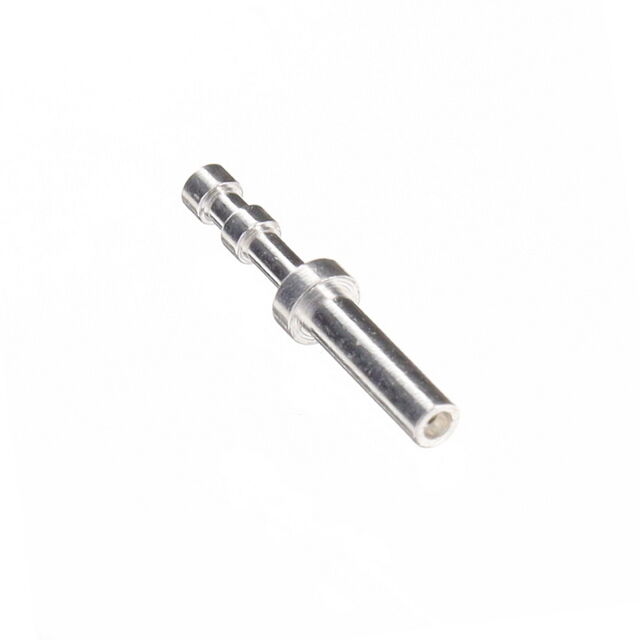

TERM TURRET SINGLE L=3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

2108-4-00-44-00-00-07-0

Active

Mill-Max Manufacturing Corp.

TERM TURRET SINGLE L=3.96MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2108-4-00-44-00-00-07-0

Board Thickness	3.18 mm
Board Thickness	0.125 in
Contact Finish	Silver
Contact Finish Thickness	300 µin
Contact Finish Thickness	7.62 µm
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	1.02 mm
Diameter - Turret Head [diameter]	0.04 in
Flange Diameter [diameter]	0.062 in
Flange Diameter [diameter]	1.57 mm
Insulation	Non-Insulated
Length - Above Board	3.96 mm
Length - Above Board	0.156 in
Length - Below Flange [x]	0.147 in
Length - Below Flange [x]	3.73 mm
Length - Overall [x]	0.303 "
Length - Overall [x]	7.7 mm
Mounting Hole Diameter [diameter]	1.09 mm
Mounting Hole Diameter [diameter]	0.043 in
Mounting Type	Through Hole
Number of Turrets	Double
Staking Side ID	0.61 mm
Staking Side ID	0.024 in
Staking Side OD [diameter]	1.02 mm
Staking Side OD [diameter]	0.04 in
Terminal Type	Single End
Termination	Swage

2108-4 Series

Part	Length - Above Board	Length - Above Board	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Staking Side OD [diameter]	Staking Side OD [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Termination	Insulation	Board Thickness	Board Thickness	Number of Turrets	Terminal Type	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Staking Side ID	Staking Side ID
Mill-Max Manufacturing Corp. 2108-4-00-80-00-00-07-0	3.96 mm	0.156 in	200 Áin	5.08 Ám	Through Hole	Brass Alloy	0.303 "	7.7 mm	1.02 mm	0.04 in	0.062 in	1.57 mm	Tin	1.09 mm	0.043 in	0.147 in	3.73 mm	Swage	Non-Insulated	3.18 mm	0.125 in	Double	Single End	1.02 mm	0.04 in	0.61 mm	0.024 in
Mill-Max Manufacturing Corp. 2108-4-00-44-00-00-07-0	3.96 mm	0.156 in	300 µin	7.62 µm	Through Hole	Brass Alloy	0.303 "	7.7 mm	1.02 mm	0.04 in	0.062 in	1.57 mm	Silver	1.09 mm	0.043 in	0.147 in	3.73 mm	Swage	Non-Insulated	3.18 mm	0.125 in	Double	Single End	1.02 mm	0.04 in	0.61 mm	0.024 in
Mill-Max Manufacturing Corp. 2108-4-00-50-00-00-07-0	3.96 mm	0.156 in	300 µin	7.62 µm	Through Hole	Brass Alloy	0.303 "	7.7 mm	1.02 mm	0.04 in	0.062 in	1.57 mm	Tin-Lead	1.09 mm	0.043 in	0.147 in	3.73 mm	Swage	Non-Insulated	3.18 mm	0.125 in	Double	Single End	1.02 mm	0.04 in	0.61 mm	0.024 in
Mill-Max Manufacturing Corp. 2108-4-00-01-00-00-07-0	3.96 mm	0.156 in	200 Áin	5.08 Ám	Through Hole	Brass Alloy	0.303 "	7.7 mm	1.02 mm	0.04 in	0.062 in	1.57 mm	Tin-Lead	1.09 mm	0.043 in	0.147 in	3.73 mm	Swage	Non-Insulated	3.18 mm	0.125 in	Double	Single End	1.02 mm	0.04 in	0.61 mm	0.024 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.78
		10	$ 0.66
		100	$ 0.59
		1000	$ 0.43
		5000	$ 0.37
		10000	$ 0.36

Description

General part information

2108-4 Series

Terminal Turret Connector Single End 0.156" (3.96mm) Silver
