JWM21RA1A/UCV-WL

Active

NKK Switches

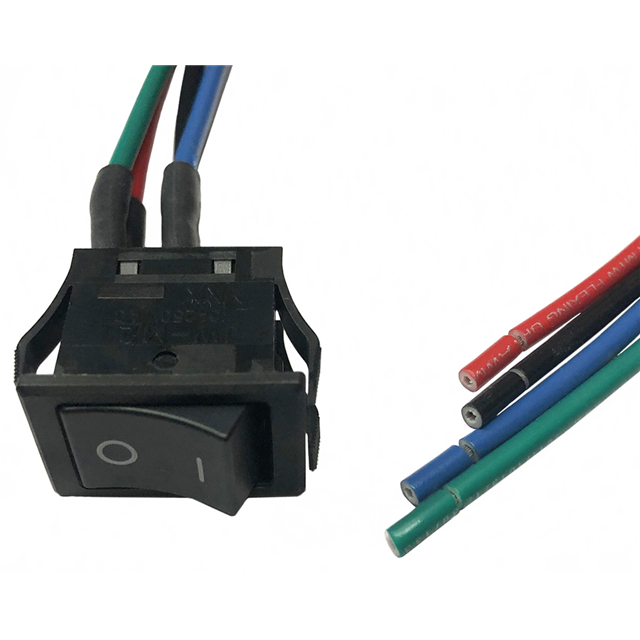

ROCKER SWITCH, HIGH INRUSH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL, SNAP-IN, BLACK, JW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

JWM21RA1A/UCV-WL

Active

NKK Switches

ROCKER SWITCH, HIGH INRUSH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL, SNAP-IN, BLACK, JW SERIES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWM21RA1A/UCV-WL

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	24 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	Wire Leads
Voltage Rating - AC	125 V

JWM21R Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current Rating (Amps)	Electrical Life	Switch Function	Ingress Protection	Actuator Marking	Termination Style	Termination Style	Termination Style	Mechanical Life	Approval Agency	Actuator Type	Voltage Rating - AC	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Color - Actuator/Cap
NKK Switches JWM21RC1A	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	O I	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Red
NKK Switches JWM21RH1H/UCV	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	O I	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST
NKK Switches JWM21RA2A/UCV-WL	70 °C	-25 °C		10 A	25000 Steps	On-Off	Dust Proof	O -		Wire Leads		25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Black
NKK Switches JWM21RA1A/UCV-WL	70 °C	-25 °C		10 A	25000 Steps	On-Off	Dust Proof	O I		Wire Leads		25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Black
NKK Switches JWM21RC1H/UCV	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	O I	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Red
NKK Switches JWM21RA1A/UCV	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	O I	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Black
NKK Switches JWM21RH1H	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	O I	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST
NKK Switches JWM21RCA/UC	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	No Marking	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Red
NKK Switches JWM21RAA/UC	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	No Marking	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Black
NKK Switches JWM21RA2A/UCV	70 °C	-25 °C	Epoxy Sealed Terminals	10 A	25000 Steps	On-Off	Dust Proof	O -	0.11 in	Quick Connect Solder	2.8 mm	25000 Steps	CSA UL VDE	Concave (Curved)	125 V	Panel Mount Snap-In	24 mm	15.4 mm	DPST	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.37
		10	$ 8.09
		25	$ 7.69
Newark	Each	1	$ 23.33
		25	$ 21.38
		50	$ 19.86
		100	$ 19.21
		250	$ 18.56

Description

General part information

JWM21R Series

Rocker Switch DPST 10A (AC) 125 V Panel Mount, Snap-In
