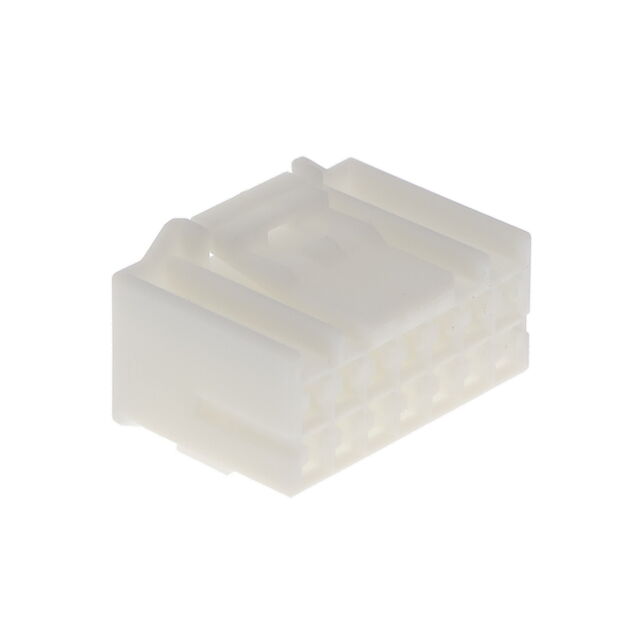

936199-1

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 14POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 14POS

Technical Specifications

Parameters and characteristics for this part

Specification	936199-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C

CONN PLUG HSG 14POS

Part	Color	Fastening Type	Insulation Material	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Contact Termination	Number of Positions	Note
TE Connectivity AMP Connectors 936199-1	Natural	Latch Lock	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Plug	-30 ░C	105 ░C	Female Socket	2	Crimp	14	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Plug Natural

Technical documentation and resources
