BD-03BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

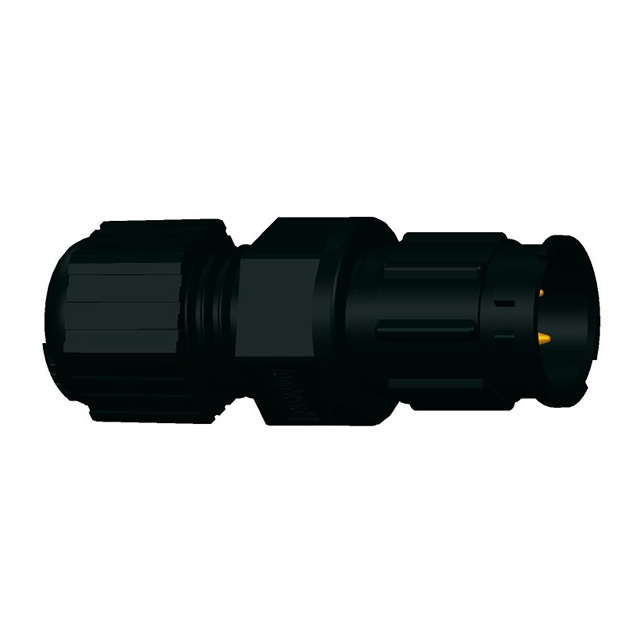

BD-03BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD-03BMMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

BD-03BMMA Series

Part	Termination	Voltage Rating	Connector Type	Current Rating (Amps)	Ingress Protection	Orientation	Primary Material	Insert Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size - Insert	Features	Shielding	Fastening Type	Color	Contact Finish - Mating	Backshell Material, Plating	Shell Material	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating
Amphenol LTW BD-03BMMA-QL8AP0	Crimp	300 VDC	Male Pins Plug	5 A	IP68 - Dust Tight Waterproof	Keyed	Plastic	Thermoplastic	Free Hanging (In-Line)	-40 °C	105 ░C	Copper Alloy	B	Backshell	Unshielded	Bayonet Lock	Black	Gold	Thermoplastic
Amphenol LTW BD-03BMMA-LL7001			Male Pins Receptacle	5 A	IP67 - Dust Tight Waterproof	Keyed	Plastic	Polyamide (PA) Nylon Glass Filled	Free Hanging (In-Line)	-40 °C	105 ░C	Copper Alloy	B	Backshell	Unshielded	Bayonet Lock	Black	Gold	Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BD-03BMMA-LL6001			Male Pins Receptacle	5 A	IP66	Keyed	Plastic	Polyamide (PA) Nylon Glass Filled	Free Hanging (In-Line)	-40 °C	105 ░C	Copper Alloy	B	Backshell Coupling Nut	Unshielded	Bayonet Lock	Black	Gold	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)
Amphenol LTW BD-03BMMA-QL8LP0	Crimp	300 VAC	Male Pins Plug	5 A	IP68 - Dust Tight Waterproof	Keyed	Plastic	Polyamide (PA) Nylon Glass Filled	Free Hanging (In-Line)	-40 °C	105 ░C	Copper Alloy	B	Backshell	Unshielded	Push-Pull	Black	Gold		Glass Filled Nylon Polyamide (PA)	3	0.394 in	8 mm	10 mm	0.315 in	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.96
		10	$ 4.48
		30	$ 4.24
		60	$ 4.13
		120	$ 3.93
		270	$ 3.64

Description

General part information

BD-03BMMA Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup
