925367-5

Active

TE Connectivity AMP Connectors

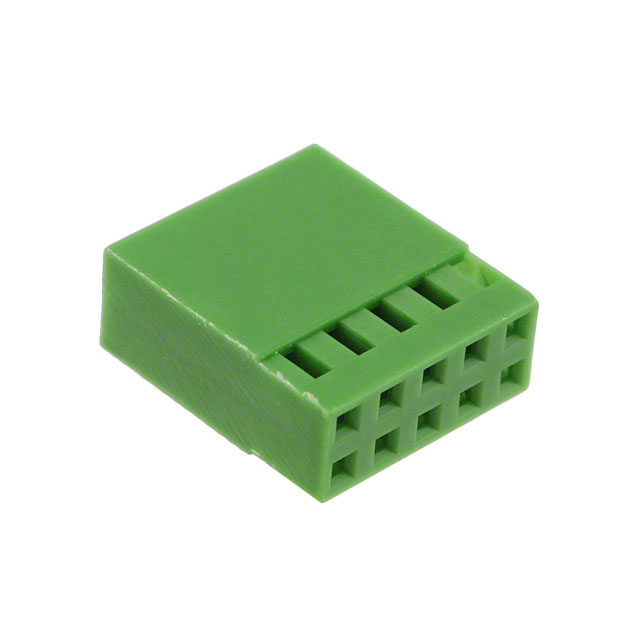

CONN RCPT HSG 10POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 10POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.80

General part information

10 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 12POS 2.54MM

Part	Contact Type	Contact Termination	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Connector Type	Row Spacing [x]	Row Spacing	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Note
TE Connectivity AMP Connectors 925367-6	Female Socket	Crimp	Green	12	-65 ░C	105 ░C	Polyamide (PA66), Nylon 6/6	Receptacle	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included
TE Connectivity AMP Connectors 925367-4	Female Socket	Crimp	Green	8	-65 ░C	105 ░C	Polyamide (PA66), Nylon 6/6	Receptacle	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included
TE Connectivity AMP Connectors 925367-5	Female Socket	Crimp	Green	10				Receptacle	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included
TE Connectivity AMP Connectors 925367-7	Female Socket	Crimp	Green	14	-65 ░C	105 ░C	Polyamide (PA66), Nylon 6/6	Receptacle	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included
TE Connectivity AMP Connectors 1-925367-0	Female Socket	Crimp	Green	20	-65 ░C	105 ░C	Polyamide (PA66), Nylon 6/6	Receptacle	0.1 in	2.54 mm	2	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included
