Q-2I0040005002M

Active

Amphenol Custom Cable

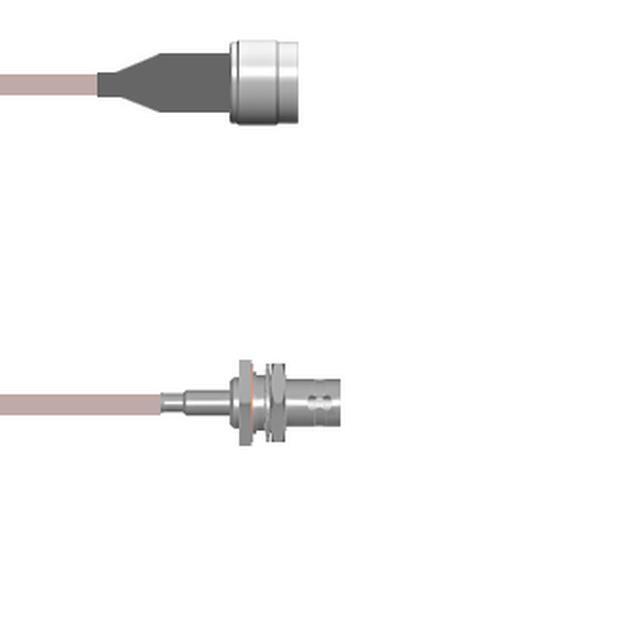

COAX CBL BNC TO N-TYPE 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I0040005002M

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I0040005002M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-2I0040 Series

Part	1st Connector	2nd Connector	Cable Type	1st Contact Gender	2nd Contact Gender	Cable Impedance	Style	Color	1st Connector Mounting Feature	Overall Impedance	Length	Length	Length	Features	Connector Impedance	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Type
Amphenol Custom Cable Q-2I00400052.5M	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms	8.2 '	98.4 in	2.5 m	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005005F	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms	5 ft	5 '	1.5 m	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005007F	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms	7 ft	84 in	2.1 m	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005002M	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms	6.6 ft	78.7 in	2 m	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005002F	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms		24 "	609.6 mm	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005003M	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms	9.8 '	118.1 in	3 m	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005009F	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms	9 ft	108 in	2.7 m	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005001F	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms		12 "	304.8 mm	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I0040005003F	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms		36 in	91.44 cm	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-2I00400051.5M	BNC Jack	N-Type Plug	RG-316	Female	Male	50 Ohms	BNC to N-Type	Copper	Bulkhead - Front Side Nut	50 Ohms	4.9 ft	59.1 in	1.5 m	Shielded	50 Ohms	Panel Mount	3 GHz	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 106.37
		25	$ 104.28
		50	$ 102.19
		100	$ 100.09
		250	$ 98.00

Description

General part information

Q-2I0040 Series

Cable Assembly Coaxial BNC to N-Type RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
