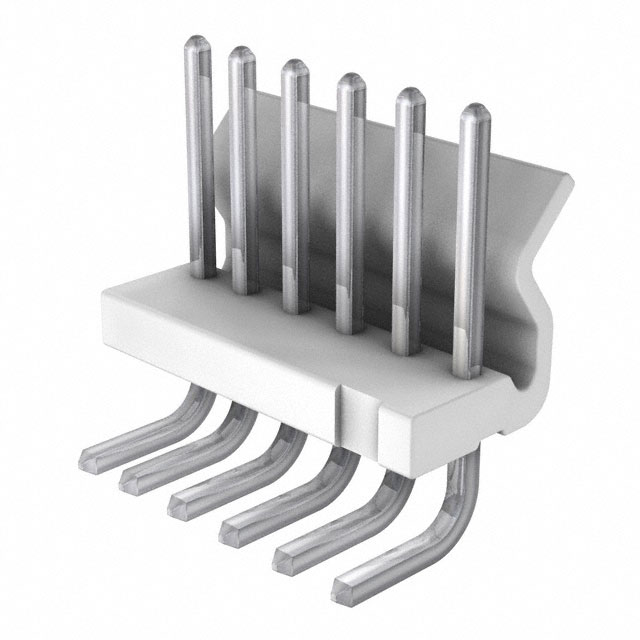

CONN HEADER R/A 6POS 3.96MM

Search across all available documentation for this part.

Obsolete

Molex

CONN HEADER R/A 6POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	0009752064

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.535 in
Contact Length - Mating	13.59 mm
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Height	0.402 in
Insulation Height	10.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 6POS 3.96MM

Part	Insulation Material	Contact Shape	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Mounting Type	Connector Type	Contact Finish - Post	Number of Positions Loaded	Contact Type	Termination	Contact Material	Number of Rows	Style	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Applications	Fastening Type	Shrouding
Molex 0009752064	Polyamide (PA66), Nylon 6/6	Square	3.6 mm	0.142 in	UL94 V-2	Through Hole, Right Angle	Header	Tin	All	Male Pin	Solder	Brass	1	Board to Board, Cable	0.535 in	13.59 mm	0.156 in	3.96 mm	0.402 in	10.2 mm	6	Automotive, General Purpose, Industrial, Medical, Telecommunications	Friction Lock	Shrouded - 1 Wall
