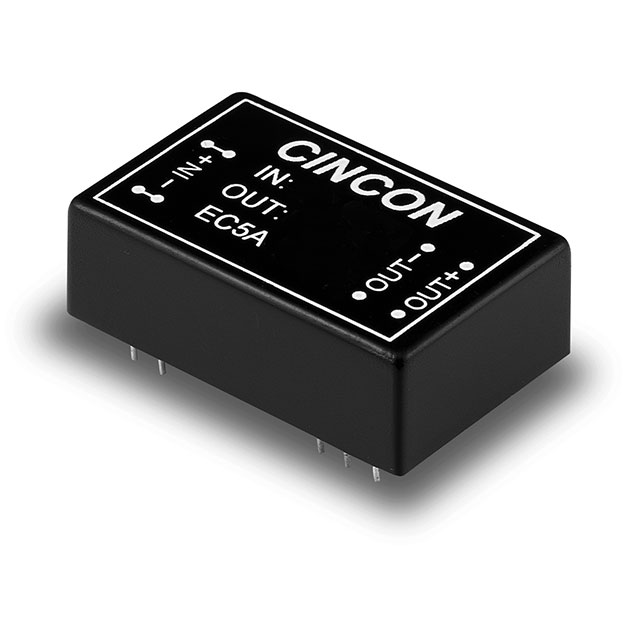

EC5A-12S33
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 3.3V 6.6W
Deep-Dive with AI
Search across all available documentation for this part.
EC5A-12S33
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 3.3V 6.6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC5A-12S33 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 84 % |
| Features | OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 14 Leads |
| Power (Watts) | 6.6 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 32 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.78 | |
| 5 | $ 14.87 | |||
| 10 | $ 14.50 | |||
| 25 | $ 14.02 | |||
| 50 | $ 13.67 | |||
| 100 | $ 13.33 | |||
| 250 | $ 12.89 | |||
| 500 | $ 12.56 | |||
Description
General part information
EC5A-12 Series
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 2A 9V - 32V Input
Documents
Technical documentation and resources
No documents available
