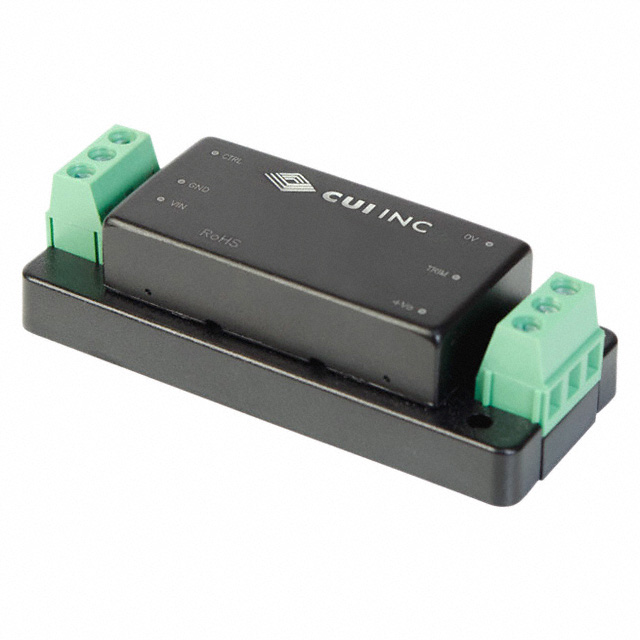

PYB15-Q48-S15-T

Obsolete

CUI Inc.

DC/DC CONVERTER 15V 15W

Deep-Dive with AI

Search across all available documentation for this part.

PYB15-Q48-S15-T

Obsolete

CUI Inc.

DC/DC CONVERTER 15V 15W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PYB15-Q48-S15-T

Approval Agency	EN
Current - Output (Max) [Max]	1 A
Efficiency	90 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	15 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	21.2 mm
Size / Dimension [z]	0.84 "
Standard Number	55024, 55032
Type	Enclosed
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Output 1	15 V

PYB15 Series

Part	Approval Agency	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	DC Voltage - Input (Min) [Min]	Standard Number	Current - Output (Max) [Max]	Input Type	DC Voltage - Input (Max) [Max]	Control Features	Applications	Standard Number	Voltage - Isolation	Features	Package / Case
CUI Inc. PYB15-Q48-D5-U	EN IEC	5 V	2	75 V	86 %	1.5 A	1.5 A	15 W	18 V	Enclosed	85 °C	-40 °C	-5 V	2.16 in	2.06 in	19.1 mm	54.9 mm	0.75 in	52.3 mm	Chassis Mount
CUI Inc. PYB15-Q24-D12-U	EN IEC	12 V	2	36 V	88 %	625 mA	625 mA	15 W	9 V	Enclosed	85 °C	-40 °C	-12 V	2.16 in	2.06 in	19.1 mm	54.9 mm	0.75 in	52.3 mm	Chassis Mount
CUI Inc. PYB15-Q24-S15-DIN	EN	15 V	1		87 %			15 W			85 °C	-40 °C		2.99 in	1.24 in	22.2 mm	76 mm	0.87 in	31.5 mm		9 V	55024 55032	1 A	DC	36 V
CUI Inc. PYB15-Q24-S12-U	EN IEC	12 V	1	36 V	89 %			15 W	9 V	Enclosed	85 °C	-40 °C		2.16 in	2.06 in	19.1 mm	54.9 mm	0.75 in	52.3 mm	Chassis Mount			1.25 A
CUI Inc. PYB15-Q24-S12	EN	12 V	1	36 V	89 %			15 W	9 V	Isolated Module	85 °C	-40 °C		2 in	25.4 mm	11.8 mm	50.8 mm	0.47 "	25.4 mm	Through Hole			1.25 A			Active High Enable	ITE (Commercial)	55024	1.5 kV	OCP OVP SCP UVLO	6-DIP Module
CUI Inc. PYB15-Q48-S3-U	EN IEC	3.3 V	1	75 V	87 %			15 W	18 V	Enclosed	85 °C	-40 °C		2.16 in	2.06 in	19.1 mm	54.9 mm	0.75 in	52.3 mm	Chassis Mount			4 A
CUI Inc. PYB15-Q24-D12	EN	12 V	2	36 V	88 %	625 mA	625 mA	15 W	9 V	Isolated Module	85 °C	-40 °C	-12 V	2 in	25.4 mm	11.8 mm	50.8 mm	0.47 "	25.4 mm	Through Hole						Active High Enable	ITE (Commercial)	55024	1.5 kV	OCP OVP SCP UVLO	6-DIP Module
CUI Inc. PYB15-Q48-S15-T	EN	15 V	1	75 V	90 %			15 W	18 V	Enclosed	85 °C	-40 °C		2.99 in	1.24 in	21.2 mm	76 mm	0.84 "	31.5 mm	Chassis Mount		55024 55032	1 A
CUI Inc. PYB15-Q48-D12	EN	12 V	2	75 V	88 %	625 mA	625 mA	15 W	18 V	Isolated Module	85 °C	-40 °C	-12 V	2 in	25.4 mm	11.8 mm	50.8 mm	0.47 "	25.4 mm	Through Hole						Active High Enable	ITE (Commercial)	55024	1.5 kV	OCP OVP SCP UVLO	6-DIP Module
CUI Inc. PYB15-Q48-S5-DIN	EN	5 V	1		87 %			15 W			85 °C	-40 °C		2.99 in	1.24 in	22.2 mm	76 mm	0.87 in	31.5 mm		18 V	55024 55032	3 A	DC	75 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PYB15 Series

Enclosed DC DC Converter 1 Output 15V 1A 75V Input

Documents

Technical documentation and resources

No documents available
