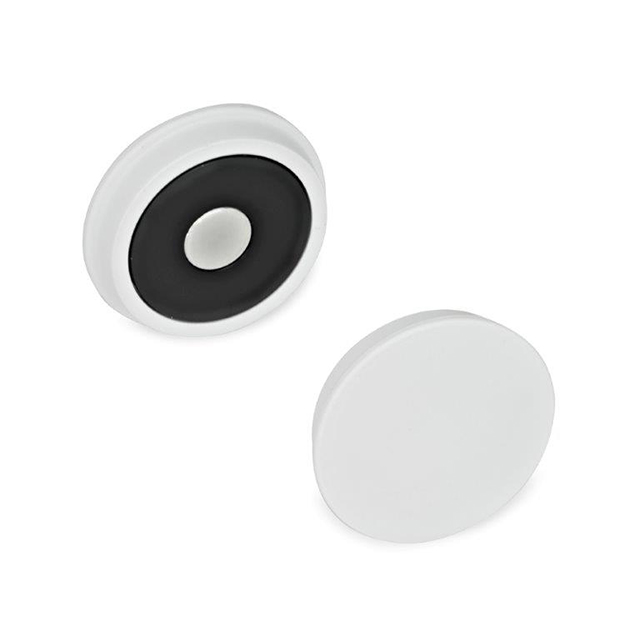

53.1-ND-25-WS

Active

J.W. Winco

MAGNET 0.866"D X 0.335"THICK RND

Search across all available documentation for this part.

Active

J.W. Winco

MAGNET 0.866"D X 0.335"THICK RND

Technical Specifications

Parameters and characteristics for this part

Part	Material	Finish	Shape	Operating Temperature	Size [diameter]	Size [z]	Size [z]	Size [diameter]
J.W. Winco 53.1-ND-18-GR	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	14 mm	8 mm	0.315 in	0.551 "
J.W. Winco 53.1-ND-36-WS	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	32.5 mm	8.5 mm	0.335 "	1.28 in
J.W. Winco 53.1-ND-36-GR	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	32.5 mm	8.5 mm	0.335 "	1.28 in
J.W. Winco 53.1-ND-36-RT	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	32.5 mm	8.5 mm	0.335 "	1.28 in
J.W. Winco 53.1-ND-40-GR	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	36 mm	8 mm	0.315 in	1.417 in
J.W. Winco 53.1-ND-25-WS	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	22 mm	8.5 mm	0.335 "	0.866 "
J.W. Winco 53.1-ND-30-WS	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	28.5 mm	8.5 mm	0.335 "	1.122 in
J.W. Winco 53.1-ND-40-WS	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	36 mm	8 mm	0.315 in	1.417 in
J.W. Winco 53.1-ND-18-WS	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	14 mm	8 mm	0.315 in	0.551 "
J.W. Winco 53.1-ND-30-RT	Neodymium Iron Boron (NdFeB)	Plastic	Round	80 °C	28.5 mm	8.5 mm	0.335 "	1.122 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.43

General part information

Magnet Neodymium Iron Boron (NdFeB) 0.866" Dia x 0.335" H (22.00mm x 8.50mm)
