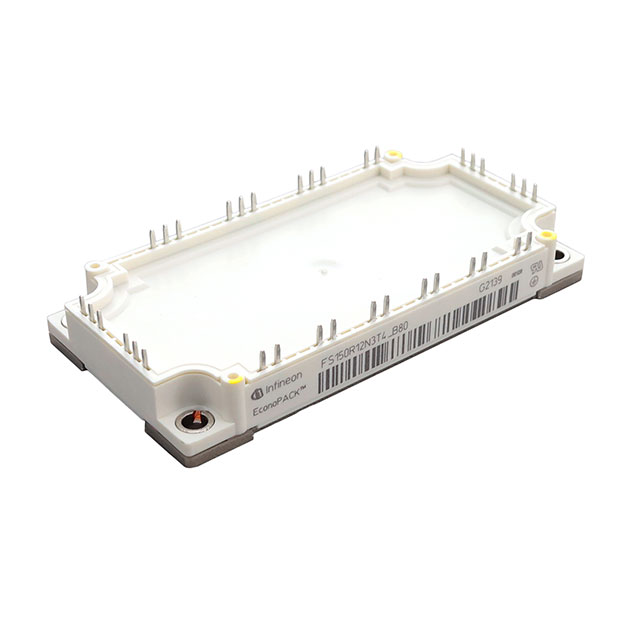

FS150R12N3T4B80BPSA1

Active

Infineon Technologies

LOW POWER ECONO AG-ECONO3B-431

Deep-Dive with AI

Search across all available documentation for this part.

FS150R12N3T4B80BPSA1

Active

Infineon Technologies

LOW POWER ECONO AG-ECONO3B-431

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS150R12N3T4B80BPSA1

null

FS150R12 Series

Part	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	IGBT Type	Mounting Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Configuration	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic	Input	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies FS150R12PT4BOSA1	Module	1200 V	Module	Trench Field Stop	Chassis Mount	680 W	1 mA	Three Phase Inverter	9.35 nF	2.15 V	Standard	200 A
Infineon Technologies FS150R12N2T7BPSA1	AG-ECONO2	1200 V	Module	Trench Field Stop	Chassis Mount	20 mW	1.2 µA	Three Level Inverter	30.1 nF	1.8 V	Standard	150 A	-40 C	175 °C
Infineon Technologies FS150R12W3T7B11BPSA1	Module	1200 V	Module	Trench Field Stop	Chassis Mount	20 mW	1.2 µA	Three Phase Inverter	30.1 nF	1.8 V	Standard	150 A	-40 C	175 °C
Infineon Technologies FS150R12N3T4PB81BPSA1
Infineon Technologies FS150R12KT4BOSA1	Module	1200 V	Module	Trench Field Stop	Chassis Mount	750 W	1 mA	Three Phase Inverter		2.1 V	Standard	150 A	-40 °C	150 °C
Infineon Technologies FS150R12N3T4B80BPSA1
Infineon Technologies FS150R12KT4PBPSA1
Infineon Technologies FS150R12N3T7BPSA1	AG-ECONO3B	1200 V	Module	Trench Field Stop	Chassis Mount	20 mW	12 µA	Three Phase Inverter	30.1 nF	1.8 V	Standard	150 A	-40 C	175 °C
Infineon Technologies FS150R12N2T7B54BPSA1	AG-ECONO2B	1200 V	Module	Trench Field Stop	Chassis Mount		12 µA	Full Bridge Inverter	30.1 nF	1.8 V	Standard	150 A	-40 C	175 °C
Infineon Technologies FS150R12KT4B11BOSA1	Module	1200 V	Module	Trench Field Stop	Chassis Mount	750 W	1 mA	Three Phase Inverter	9.35 nF	2.1 V	Standard	150 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 163.01
		10	$ 146.47

Description

General part information

FS150R12 Series

IGBT Module

Documents

Technical documentation and resources

No documents available
