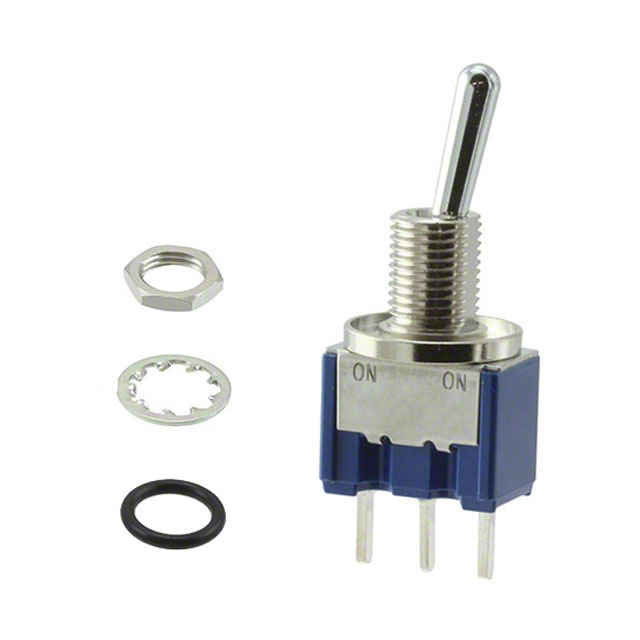

8F1012-Z

Active

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8F1012-Z

Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Ingress Protection	Splash Proof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Circuit	Ingress Protection	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Illumination	Switch Function	Electrical Life	Bushing Thread	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Nidec Components Corporation 8F1012-Z	SPDT	Splash Proof	30 V	PC Pin	4 A 6 A	Standard Round	125 V	Non-Illuminated	On-On	50000 Cycles	1/4-40	6.5 mm	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
