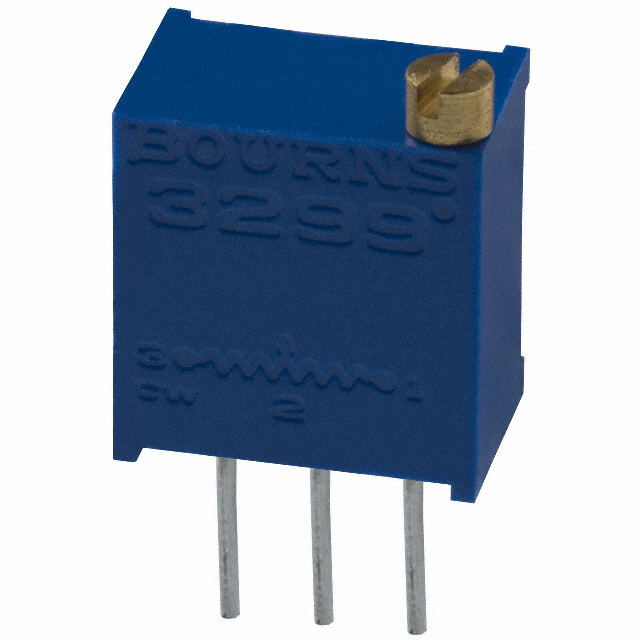

3299W-1-500LF

Active

Bourns Inc.

TRIMMER 50 OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 50 OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Termination Style	Power (Watts)	Power (Watts)	Number of Turns	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Adjustment Type	Resistive Material	Resistance
Bourns Inc. 3299W-1-503	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	50 kOhms
Bourns Inc. 3299W-1-201	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	200 Ohms
Bourns Inc. 3299W-1-101LF	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	100 Ohms
Bourns Inc. 3299W-1-105	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	1 MOhms
Bourns Inc. 3299W-1-200LF	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	20 Ohms
Bourns Inc. 3299W-1-100LF	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	10 Ohms
Bourns Inc. 3299W-1-204LF	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	200000 Ohms
Bourns Inc. 3299W-1-102	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	1000 Ohms
Bourns Inc. 3299W-1-500LF	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	50 Ohms
Bourns Inc. 3299W-1-502LF	100 ppm/°C	PC Pins	0.5 W	0.5 W	25	Through Hole	0.375 in	9.53 mm	6.1 mm	0.24 in	10 %	Top Adjustment	Cermet	5 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment
