9-1393644-4

Active

TE Connectivity AMP Connectors

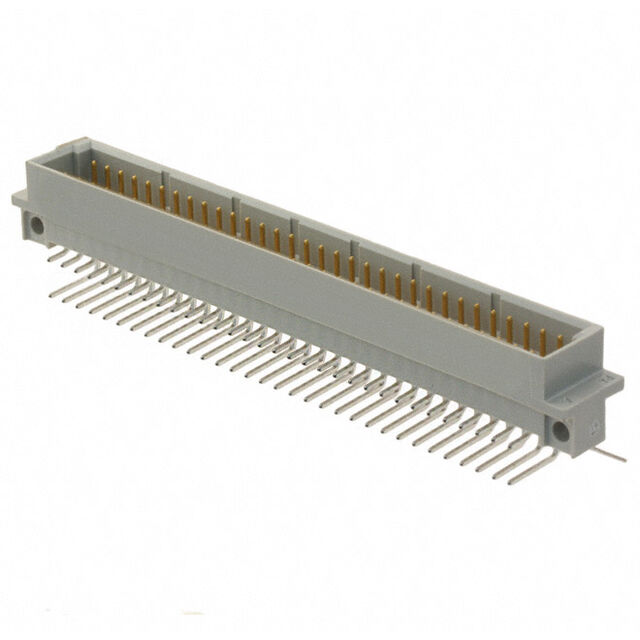

CONN DIN PLUG 96POS PCB RA GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9-1393644-4

Active

TE Connectivity AMP Connectors

CONN DIN PLUG 96POS PCB RA GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.87
		10	$ 5.14
		100	$ 4.60
		1000	$ 3.82

Description

General part information

1393644 Series

96 Position Din Connector Plug, Male Pins Gold or Gold-Palladium Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Specification	9-1393644-4	1393644 Series

Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Level, Class	-	1
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	96	30 - 96
Number of Positions Loaded	64	32 - 64
Number of Positions Loaded	-	All
Number of Rows	3	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	C	C/3, C, B, C/2
Style	-	1/3 C, 1/2 C
Termination	Solder	Solder

Part	Material - Insulation	Pitch [x]	Pitch [x]	Material Flammability Rating	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Style	Style	Contact Finish	Mounting Type	Number of Positions	Number of Positions Loaded	Level, Class	Number of Positions Loaded
TE Connectivity AMP Connectors 6-1393644-9	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C/3	1/3 C	Gold, Gold-Palladium	Through Hole, Right Angle	30	All
TE Connectivity AMP Connectors 1-1393644-7	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C		Gold, Gold-Palladium	Through Hole, Right Angle	96		1	64
TE Connectivity AMP Connectors 6-1393644-7	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	2	B		Gold, Gold-Palladium	Through Hole, Right Angle	64			32
TE Connectivity AMP Connectors 8-1393644-3	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C		Gold, Gold-Palladium	Through Hole, Right Angle	96	All
TE Connectivity AMP Connectors 1393644-9	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C/2	1/2 C	Gold, Gold-Palladium	Through Hole, Right Angle	48	All	1
TE Connectivity AMP Connectors 8-1393644-7	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C		Gold, Gold-Palladium	Through Hole, Right Angle	96	All
TE Connectivity AMP Connectors 8-1393644-0	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C/2	1/2 C	Gold, Gold-Palladium	Through Hole, Right Angle	48	All
TE Connectivity AMP Connectors 9-1393644-4	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C		Gold, Gold-Palladium	Through Hole, Right Angle	96			64
TE Connectivity AMP Connectors 8-1393644-5	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	UL94 V-0	Solder	Male Pins, Plug	-55 °C	125 °C	3	C		Gold, Gold-Palladium	Through Hole, Right Angle	96			64

Part

Material - Insulation

Pitch [x]

Material Flammability Rating

Termination

Connector Type

Operating Temperature [Min]

Operating Temperature [Max]

Number of Rows

Style

Contact Finish

Mounting Type

Number of Positions

Number of Positions Loaded

Level, Class

Number of Positions Loaded

TE Connectivity AMP Connectors

6-1393644-9

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

C/3

1/3 C

Gold, Gold-Palladium

Through Hole, Right Angle

All

TE Connectivity AMP Connectors

1-1393644-7

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

Gold, Gold-Palladium

Through Hole, Right Angle

TE Connectivity AMP Connectors

6-1393644-7

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

Gold, Gold-Palladium

Through Hole, Right Angle

TE Connectivity AMP Connectors

8-1393644-3

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

Gold, Gold-Palladium

Through Hole, Right Angle

All

TE Connectivity AMP Connectors

1393644-9

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

C/2

1/2 C

Gold, Gold-Palladium

Through Hole, Right Angle

All

TE Connectivity AMP Connectors

8-1393644-7

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

Gold, Gold-Palladium

Through Hole, Right Angle

All

TE Connectivity AMP Connectors

8-1393644-0

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

C/2

1/2 C

Gold, Gold-Palladium

Through Hole, Right Angle

All

TE Connectivity AMP Connectors

9-1393644-4

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

Gold, Gold-Palladium

Through Hole, Right Angle

TE Connectivity AMP Connectors

8-1393644-5

Glass Filled, Polybutylene Terephthalate (PBT), Polyester

2.54 mm

0.1 in

UL94 V-0

Solder

Male Pins, Plug

-55 °C

125 °C

Gold, Gold-Palladium

Through Hole, Right Angle
