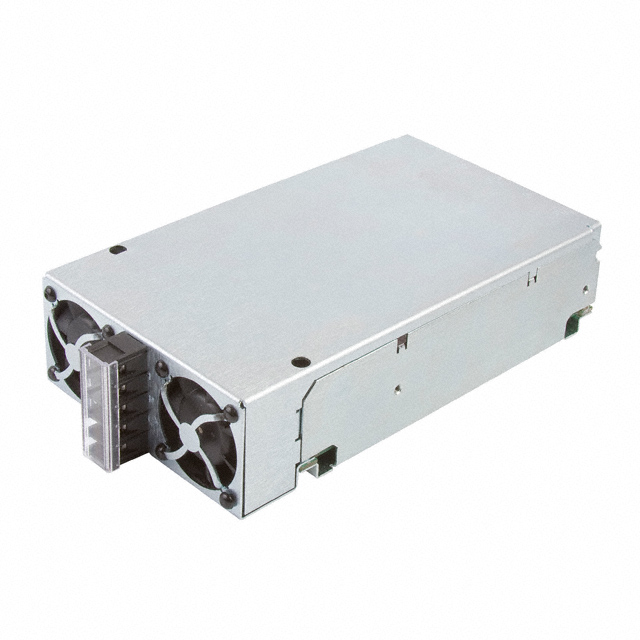

EMH350PD22-EF
ObsoleteXP POWER
AC/DC CONVERTER 12V 36V 350W
Deep-Dive with AI
Search across all available documentation for this part.
EMH350PD22-EF
ObsoleteXP POWER
AC/DC CONVERTER 12V 36V 350W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EMH350PD22-EF |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, TUV, UL |
| Current - Output 1 | 16.5 A |
| Current - Output 2 | 5.5 A |
| Efficiency | 87 % |
| Features | Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 350 W |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [x] | 7 " |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 44.5 mm |
| Size / Dimension [z] | 1.75 " |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 275 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 36 V |
EMH350 Series
| Part | Current - Output 2 | Applications | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Type | Efficiency | Mounting Type | Current - Output 1 | Minimum Load Required | Voltage - Input [Min] | Voltage - Input [Max] | Standard Number | Voltage - Output 2 | Features | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XP POWER | 5.5 A | ITE (Commercial) Medical | 350 W | 1.57 " | 6 in | 101.6 mm | 4 " | 39.8 mm | 152.4 mm | 4000 V | 2 | 70 °C | 0 °C | CB CE TUV UL | Open Frame | 87 % | Chassis Mount | 16.5 A | 80 VAC | 275 VAC | 62368-1 | 36 V | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 12 V | |
XP POWER | 4.2 A | ITE (Commercial) Medical | 350 W | 1.75 " | 7 " | 101.6 mm | 4 " | 44.5 mm | 177.8 mm | 4000 V | 2 | 70 °C | 0 °C | CB CE TUV UL | Enclosed | 87 % | Chassis Mount | 16.5 A | 80 VAC | 275 VAC | 62368-1 | 48 V | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 12 V | |
XP POWER | ITE (Commercial) Medical | 350 W | 1.43 in | 5 in | 76.2 mm | 3 " | 36.3 mm | 127 mm | 4000 V | 1 | 70 °C | 0 °C | CB CE TUV UL | Open Frame | 87 % | Chassis Mount | 19.5 A | 80 VAC | 275 VAC | 62368-1 | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 18 V | |||
XP POWER | 5.5 A | ITE (Commercial) Medical | 350 W | 1.75 " | 7 " | 101.6 mm | 4 " | 44.5 mm | 177.8 mm | 4000 V | 2 | 70 °C | 0 °C | CB CE TUV UL | Enclosed | 87 % | Chassis Mount | 16.5 A | 80 VAC | 275 VAC | 62368-1 | 36 V | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 12 V | |
XP POWER | ITE (Commercial) Medical | 350 W | 1.43 in | 5 in | 76.2 mm | 3 " | 36.3 mm | 127 mm | 4000 V | 1 | 70 °C | 0 °C | CB CE TUV UL | Open Frame | 87 % | Chassis Mount | 14.6 A | 80 VAC | 275 VAC | 62368-1 | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 24 V | |||
XP POWER | ITE (Commercial) Medical | 350 W | 1.43 in | 5 in | 76.2 mm | 3 " | 36.3 mm | 127 mm | 4000 V | 1 | 70 °C | 0 °C | CB CE TUV UL | Open Frame | 87 % | Chassis Mount | 29.2 A | 80 VAC | 275 VAC | 62368-1 | Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input | 12 V | |||
XP POWER | 8.3 A | ITE (Commercial) Medical | 350 W | 1.75 " | 7 " | 101.6 mm | 4 " | 44.5 mm | 177.8 mm | 4000 V | 2 | 70 °C | 0 °C | CB CE TUV UL | Enclosed | 87 % | Chassis Mount | 16.5 A | 80 VAC | 275 VAC | 62368-1 | 24 V | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 12 V | |
XP POWER | ITE (Commercial) Medical | 350 W | 1.43 in | 5 in | 76.2 mm | 3 " | 36.3 mm | 127 mm | 4000 V | 1 | 70 °C | 0 °C | CB CE TUV UL | Open Frame | 87 % | Chassis Mount | 7.3 A | 80 VAC | 275 VAC | 62368-1 | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 48 V | |||
XP POWER | ITE (Commercial) Medical | 350 W | 1.43 in | 5 in | 76.2 mm | 3 " | 36.3 mm | 127 mm | 4000 V | 1 | 70 °C | 0 °C | CB CE TUV UL | Open Frame | 87 % | Chassis Mount | 29.2 A | 80 VAC | 275 VAC | 62368-1 | Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input | 12 V | |||
XP POWER | ITE (Commercial) Medical | 350 W | 1.43 in | 5 in | 76.2 mm | 3 " | 36.3 mm | 127 mm | 4000 V | 1 | 70 °C | 0 °C | CB CE TUV UL | Open Frame | 87 % | Chassis Mount | 19.5 A | 80 VAC | 275 VAC | 62368-1 | Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EMH350 Series
Enclosed AC DC Converters 2 Output 12V 36V 80 ~ 275 VAC Input
