Technical Specifications
Parameters and characteristics for this part
| Specification | FMMT411FDBW-7 |
|---|---|
| Current - Collector (Ic) (Max) | 5 A |
| Current - Collector Cutoff (Max) [Max] | 100 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 100 |
| Frequency - Transition | 110 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

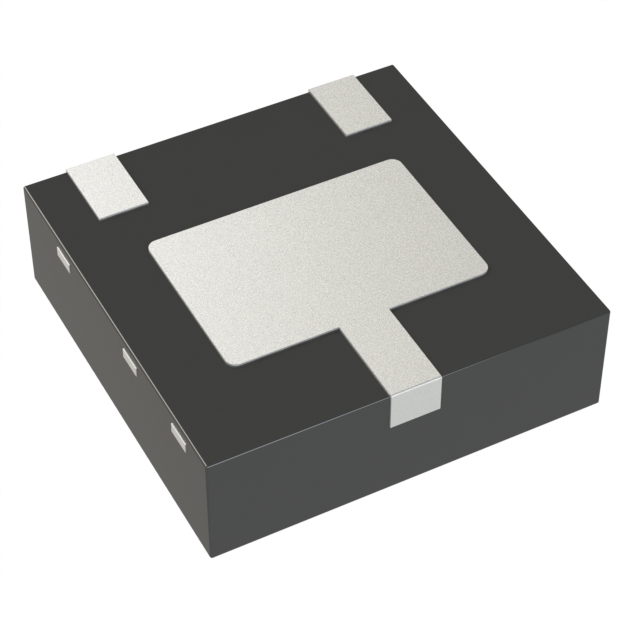

| Package / Case | 3-UDFN Exposed Pad |
| Power - Max [Max] | 1.7 W |
| Supplier Device Package | W-DFN2020-3 (Type A) |
| Transistor Type | NPN - Avalanche Mode |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.31 | |
Description
General part information
FMMT411FDBW Series
The FMMT411FDBW is a silicon planar bipolar transistor designed for operating in avalanche mode. Tight process control and low inductance packaging combine to produce high on current pulses with fast edges.
