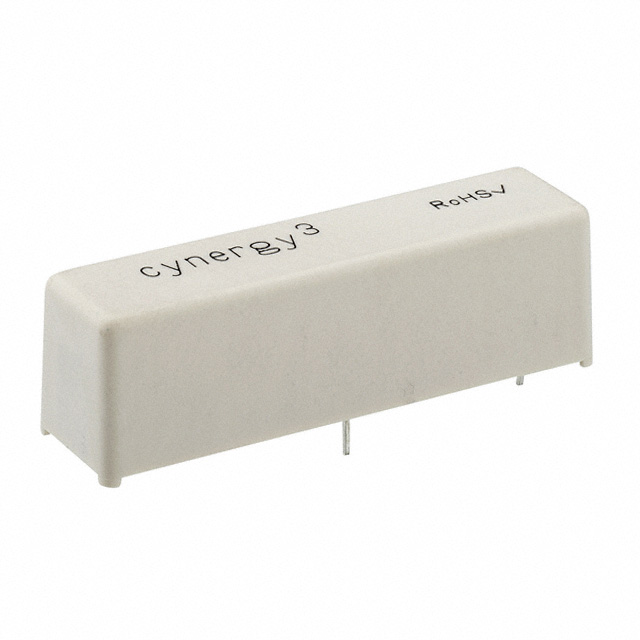

DAT200-05

Active

Sensata Technologies

RELAY REED SPST-NO 3A 5V

Search across all available documentation for this part.

Active

Sensata Technologies

RELAY REED SPST-NO 3A 5V

Technical Specifications

Parameters and characteristics for this part

RELAY REED SPST-NO 3A 5V

Part	Coil Resistance	Termination Style	Contact Rating (Current)	Must Operate Voltage	Operate Time	Switching Voltage	Release Time	Coil Voltage	Contact Material	Mounting Type	Contact Form	Coil Current	Coil Type	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]
Sensata Technologies DAT200-05	28 Ohms	PC Pin	3 A	3.75 VDC	6 ms	2500 VDC, 2500 VAC	1 ms	5 VDC	Tungsten (W)	Through Hole	SPST-NO (1 Form A)	179 mA	Non Latching	0.5 VDC	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPST-NO 3A 5V
