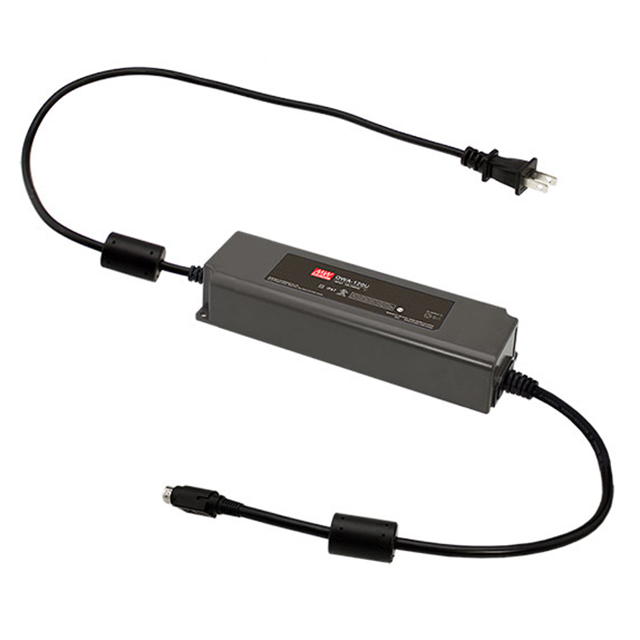

OWA-120U-42

Active

MEAN WELL USA Inc.

AC/DC DESKTOP ADAPTER 42V 122W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OWA-120U-42

Active

MEAN WELL USA Inc.

AC/DC DESKTOP ADAPTER 42V 122W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OWA-120U-42

Applications	ITE (Commercial)
Approval Agency	cULus, FCC
Cord Length	0.3 m
Cord Length	11.8 in
Current - Output (Max) [Max]	2.9 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	NEMA 1-15P
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	122 W
Region Utilized	North America
Size / Dimension [x]	7.52 in
Size / Dimension [x]	191 mm
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	37.5 mm
Size / Dimension [z]	1.48 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	42 V

OWA-120U Series

Part	No Load Power Consumption [Max]	Output Connector	Output Connector	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Input Connector	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Region Utilized	Power (Watts)	Input Type	Current - Output (Max) [Max]	Voltage - Output	Form	Cord Length
MEAN WELL USA Inc. OWA-120U-42	150 mW	4 Pin	Power DIN	cULus FCC	90 VAC	264 VAC	ITE (Commercial)	NEMA 1-15P	Level VI	-40 °C	70 °C	0.3 m	11.8 in	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	North America	122 W	Cord	2.9 A	42 V	Desktop (Class II)
MEAN WELL USA Inc. OWA-120U-48	150 mW	4 Pin	Power DIN	cULus FCC	90 VAC	264 VAC	ITE (Commercial)	NEMA 1-15P	Level VI	-40 °C	70 °C		0.3 m	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	North America	120 W	Cord	2.5 A	48 V	Desktop (Class II)	11.8 in
MEAN WELL USA Inc. OWA-120U-36	150 mW	4 Pin	Power DIN	cULus FCC	90 VAC	264 VAC	ITE (Commercial)	NEMA 1-15P	Level VI	-40 °C	70 °C		0.3 m	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	North America	122 W	Cord	3.4 A	36 V	Desktop (Class II)	11.8 in
MEAN WELL USA Inc. OWA-120U-15	150 mW	4 Pin	Power DIN	cULus FCC	90 VAC	264 VAC	ITE (Commercial)	NEMA 1-15P	Level VI	-40 °C	70 °C	0.3 m	11.8 in	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	North America	120 W	Cord	8 A	15 VDC	Desktop (Class II)
MEAN WELL USA Inc. OWA-120U-30	150 mW	4 Pin	Power DIN	cULus FCC	90 VAC	264 VAC	ITE (Commercial)	NEMA 1-15P	Level VI	-40 °C	70 °C		0.3 m	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	North America	120 W	Cord	4 A	30 VDC	Desktop (Class II)	11.8 in
MEAN WELL USA Inc. OWA-120U-12	150 mW	4 Pin	Power DIN	cULus FCC	90 VAC	264 VAC	ITE (Commercial)	NEMA 1-15P	Level VI	-40 °C	70 °C		0.3 m	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	North America	120 W	Cord	10 A	12 V	Desktop (Class II)	11.8 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 52.44

Description

General part information

OWA-120U Series

42V 122 W AC/DC External Desktop (Class II) Adapter Cord Input
