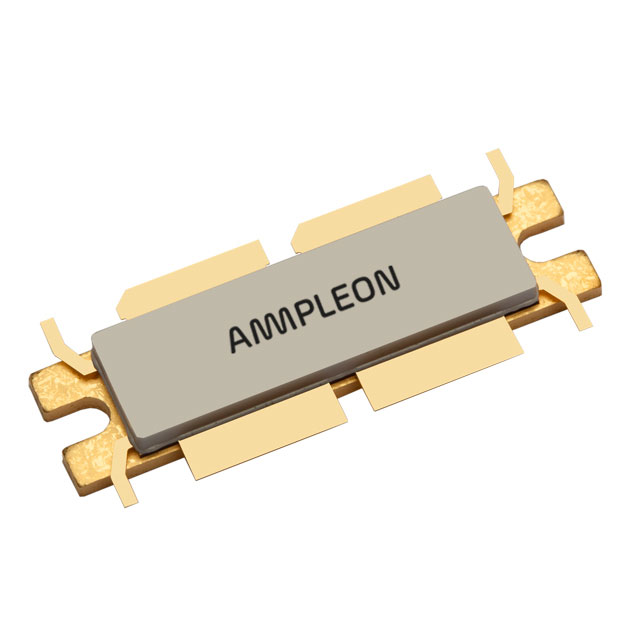

BLF6G10L-260PBM,11

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V LDMOST

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V LDMOST

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BLF6G10L-260PBM,11	BLF6G10 Series

Configuration	Dual	Common Source, Dual
Current - Test	1.8 A	1.8 - 950 A
Current Rating (Amps)	64 A	11 - 64 A
Frequency	-	823.5 - 962.5 MHz
Frequency	-	788.5 - 922.5 MHz
Gain	-	21 - 23 dBi
Mounting Type	Chassis Mount	Surface Mount, Chassis Mount
Package / Case	SOT-1110A	SOT-539B, SOT-539A, SOT-502B, SOT-1112A, SOT-608A, SOT-502A, SOT-1110A
Power - Output	40 W	1 - 40 W
Supplier Device Package	LDMOST	SOT539B, SOT539A, SOT502B, CDFM6, CDFM2, SOT502A, LDMOST
Voltage - Rated	65 V	65 V
Voltage - Test	28 V	28 V

RF MOSFET LDMOS 28V SOT539B

Part	Configuration	Voltage - Test	Current Rating (Amps)	Mounting Type	Power - Output	Frequency [Max]	Frequency [Min]	Gain	Voltage - Rated	Current - Test	Supplier Device Package	Package / Case
Ampleon USA Inc. BLF6G10LS-260PRN:1	Common Source, Dual	28 V	64 A	Surface Mount	40 W	962.5 MHz	917.5 MHz	22 dBi	65 V	1.8 A	SOT539B	SOT-539B
Ampleon USA Inc. BLF6G10L-260PRN,11	Common Source, Dual	28 V	64 A	Chassis Mount	40 W	962.5 MHz	917.5 MHz	22 dBi	65 V	1.8 A	SOT539A	SOT-539A
Ampleon USA Inc. BLF6G10LS-135RN:11		28 V	32 A	Chassis Mount	26.5 W	891.5 MHz	871.5 MHz	21 dB	65 V	950 mA	SOT502B	SOT-502B
Ampleon USA Inc. BLF6G10L-40BRN,118	Common Source, Dual	28 V	11 A	Chassis Mount	2.5 W	823.5 MHz	788.5 MHz	23 dBi	65 V	390 mA	CDFM6	SOT-1112A
Ampleon USA Inc. BLF6G10LS-135R,118		28 V	32 A	Chassis Mount	26.5 W	891.5 MHz	871.5 MHz	21 dB	65 V	950 mA	SOT502B	SOT-502B
Ampleon USA Inc. BLF6G10-45,135		28 V	13 A	Chassis Mount	1 W	957.5 MHz	922.5 MHz	22.5 dB	65 V	350 mA	CDFM2	SOT-608A
Ampleon USA Inc. BLF6G10-135RN,112		28 V	32 A	Chassis Mount	26.5 W	891.5 MHz	871.5 MHz	21 dB	65 V	950 mA	SOT502A	SOT-502A
Ampleon USA Inc. BLF6G10L-260PBM,11	Dual	28 V	64 A	Chassis Mount	40 W				65 V	1.8 A	LDMOST	SOT-1110A
Ampleon USA Inc. BLF6G10LS-135RN,11		28 V	32 A	Chassis Mount	26.5 W	891.5 MHz	871.5 MHz	21 dB	65 V	950 mA	SOT502B	SOT-502B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 1.8 A 40W LDMOST
