FD3H0245G

Active

Belden Inc.

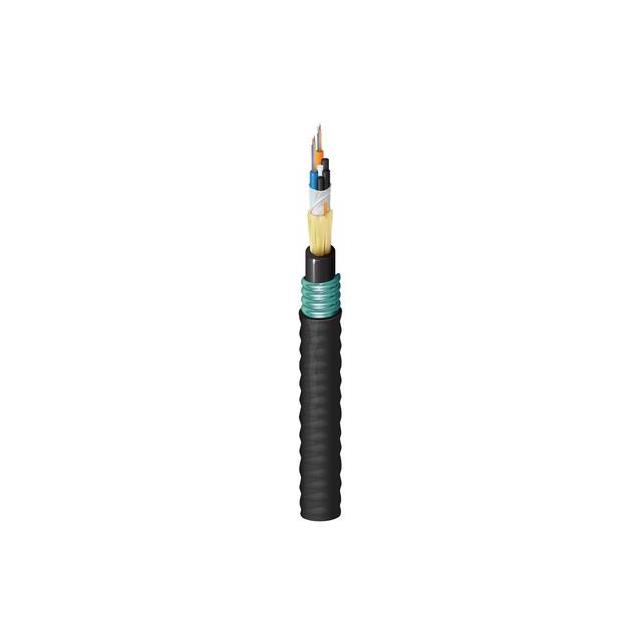

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FD3H0245G

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Steel Armor, 24 Fibers, Rip Cord
Jacket (Insulation) Diameter [diameter]	0.63 in
Jacket (Insulation) Diameter [diameter]	16 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Multimode

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Tensile Strength	Operating Temperature [Min]	Operating Temperature [Max]	Type	Cladding Diameter [diameter]	Jacket Color	Core Diameter [diameter]	Ratings	Style	Jacket (Insulation) Material	Features
Belden Inc. FD3H0245G	0.63 in	16 mm	81.6 kg	-40 °C	70 °C	Multimode	125 µm	Black	50 µm	OFCR	Multiple Fibers	Poly-Vinyl Chloride (PVC)	24 Fibers Rip Cord Steel Armor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 6.39

General part information

Fiber Optic Cable Black Multimode 125µm
