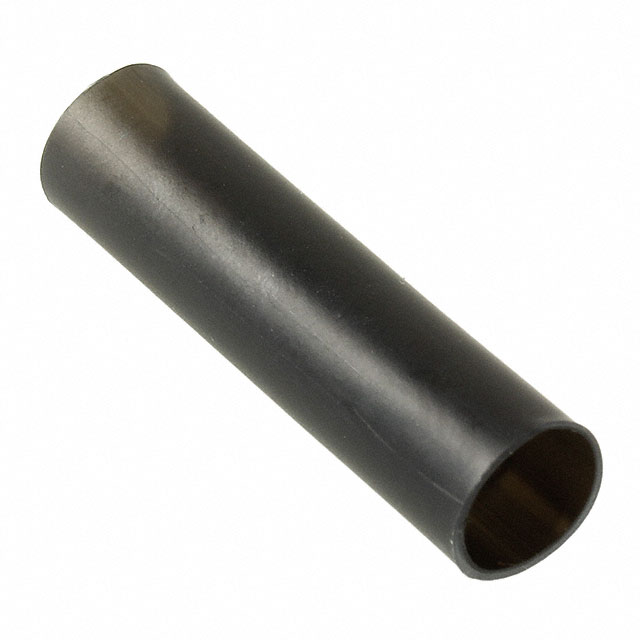

QSZH-125-NR1-30MM
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 0.226" X 0.098' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
QSZH-125-NR1-30MM
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK 0.226" X 0.098' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QSZH-125-NR1-30MM |
|---|---|
| Color | Black |
| Features | Fluid Resistant, Abrasion and Cut Resistant, Adhesive Lined |
| Inner Diameter - Recovered [diameter] | 0.049 in |
| Inner Diameter - Recovered [diameter] | 1.24 mm |
| Inner Diameter - Supplied [diameter] | 5.75 mm |
| Inner Diameter - Supplied [diameter] | 0.226 in |
| Length | 30 mm |
| Length | 0.098 ft |
| Length | 1.18 " |
| Material | Polyolefin (PO), Irradiated, Halogen Free |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Recovered Wall Thickness | 0.045 in |
| Recovered Wall Thickness | 1.14 mm |
| Shrink Temperature | 110 °C |
| Shrinkage Ratio | 4 to 1 |
| Type | Tubing, Semi Rigid |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 90000 | $ 0.14 | |
Description
General part information
QSZH-125 Series
Heat Shrink Tubing, Semi Rigid 0.226" (5.75mm) 4 to 1 Black 0.098' (30.00mm, 1.18")
