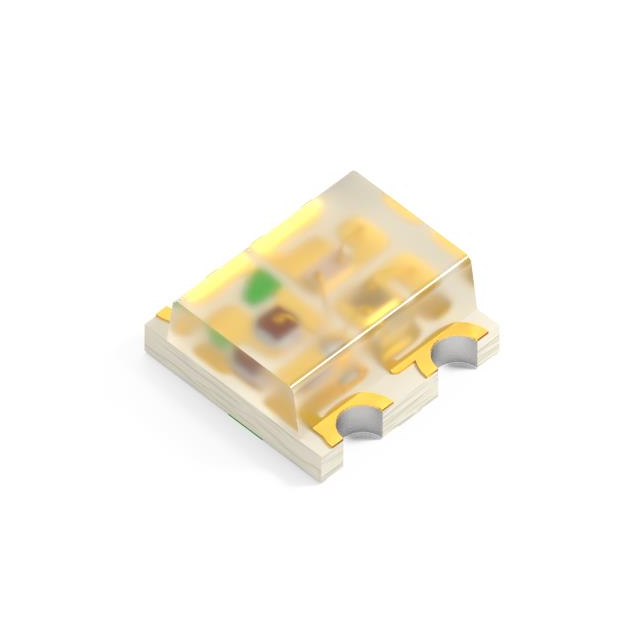

XZMDKDGCBD110W
ActiveSunLED
LED RGB CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMDKDGCBD110W
ActiveSunLED
LED RGB CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDKDGCBD110W |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 1.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 79 mcd |
| Millicandela Rating [custom] | 297 mcd |
| Millicandela Rating [custom] | 69 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Wavelength - Dominant | 465 nm, 630 nm, 525 nm |
| Wavelength - Peak [custom] | 515 nm |
| Wavelength - Peak [custom] | 645 nm |
| Wavelength - Peak [custom] | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 1.05 | ||
| 10 | $ 0.64 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 2000 | $ 0.31 | ||
| 4000 | $ 0.29 | |||
| 6000 | $ 0.28 | |||
| 10000 | $ 0.28 | |||
| 14000 | $ 0.27 | |||
| 20000 | $ 0.26 | |||
Description
General part information
XZMDKDGCBD110 Series
Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.95V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
