202-0014-01

Active

Schmartboard, Inc.

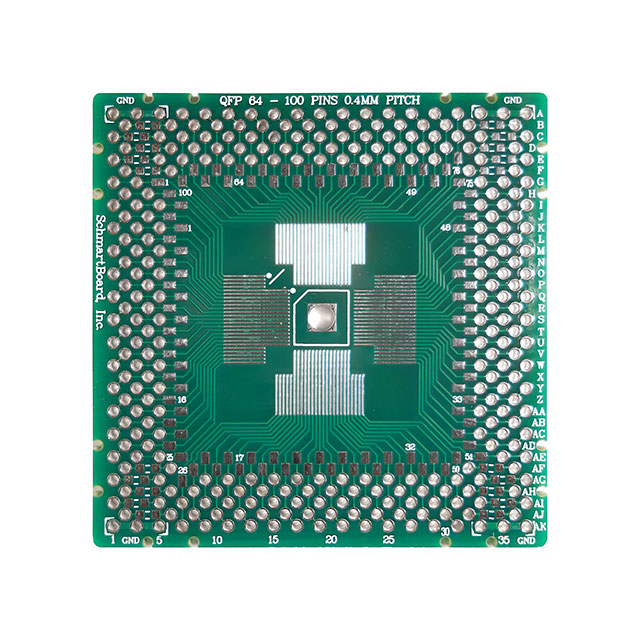

SCHMARTBOARDEZ QFP 64-100 PINS,

Search across all available documentation for this part.

Active

Schmartboard, Inc.

SCHMARTBOARDEZ QFP 64-100 PINS,

Technical Specifications

Parameters and characteristics for this part

Specification	202-0014-01

Number of Positions	100
Package Accepted	TQFP, QFP, PQFP
Pitch [x]	0.016 in
Pitch [x]	0.4 mm
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

SCHMARTBOARDEZ QFP 64-100 PINS,

Part	Package Accepted	Proto Board Type	Pitch [x]	Pitch [x]	Number of Positions	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Schmartboard, Inc. 202-0014-01	PQFP, QFP, TQFP	SMD to Plated Through Hole Board	0.016 in	0.4 mm	100	2 in	50.8 mm	50.8 mm	2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

SCHMARTBOARDEZ QFP 64-100 PINS,

Technical documentation and resources
