981-015-130R121

Active

NorComp Inc.

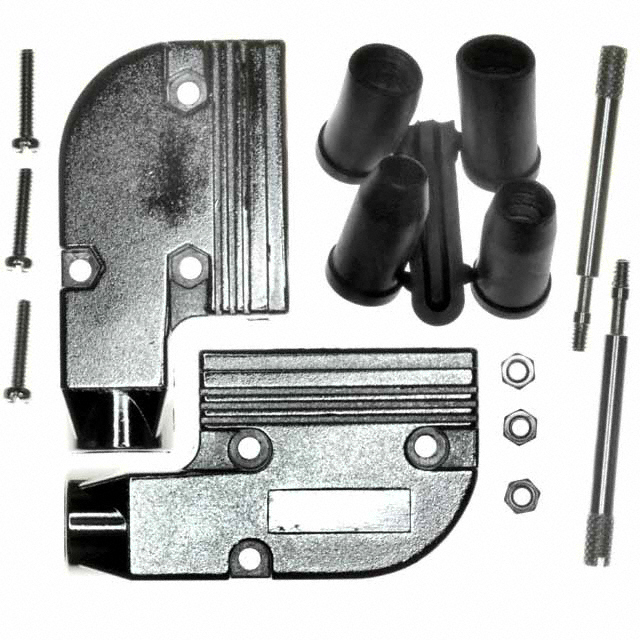

D SUB BACKSHELL, ARMOR 981 SERIES, DA, 90°, ZINC ALLOY BODY

Find alt

Alpha

981-015-130R121

Active

NorComp Inc.

D SUB BACKSHELL, ARMOR 981 SERIES, DA, 90°, ZINC ALLOY BODY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

981-015 Series

The 981 series Ethernet D-sub Backshell is available in 3 industry sizes/positions (9, 15 and 25) and also available in die cast for over 70dB shielding. It is non-conductive grommet/strain relief supplied to enhance shielding and provide proper strain relief.

Technical Specifications

Parameters and characteristics for this part

Specification	981-015-130R121

Accessory Type	Two Piece Backshell
Cable Exit Angle	90 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	15pos, HD26pos
Compatible Shell Size	A
Features	Mating Screws 4-40
Hardware	Grommets, Assembly Hardware
Material	Zinc Alloy, Metal
Number of Positions	15
Plating	Nickel over Copper
Primary Material	Metal
Shielding	Shielded

981-015 Series

Part	Shielding	Cable Exit Angle	Cable Type	Compatible D-Sub Size	Plating	Number of Positions	Primary Material	Compatible Shell Size	Accessory Type	Material	Color	Hardware	Features
NorComp Inc. 981-015-030R121	Shielded	90 °	Round	15pos HD26pos	Nickel over Copper	15	Metal	A	Two Piece Backshell	Metal Zinc Alloy	Silver	Assembly Hardware Grommets
NorComp Inc. 981-015-130R121	Shielded	90 °	Round	15pos HD26pos	Nickel over Copper	15	Metal	A	Two Piece Backshell	Metal Zinc Alloy	Silver	Assembly Hardware Grommets	Mating Screws 4-40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Backshell Reference Guide
