A3AAB-1406G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASC14B/AE14G/ASC14B
Deep-Dive with AI
Search across all available documentation for this part.
A3AAB-1406G
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASC14B/AE14G/ASC14B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3AAB-1406G | A3AAB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 457.2 - 914.4 mm |
| Length | - | 1.5 - 3 ft |
| Number of Positions | 14 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.39 | |
| 10 | $ 6.13 | |||
| 25 | $ 5.68 | |||
| 50 | $ 5.37 | |||
| 100 | $ 5.08 | |||
| 250 | $ 4.71 | |||
| 500 | $ 4.46 | |||
| 1000 | $ 4.22 | |||
| 2500 | $ 3.99 | |||
A3AAB Series
IDC CABLE- ASC14B/AE14G/ASC14B
| Part | Shielding | Cable Termination | Connector Type | Contact Finish | Length | Length | Length | Number of Positions | Number of Rows | Pitch - Cable | Pitch - Cable | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Length [x] | Length [x] | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3AAB-1406G | Unshielded | IDC | Socket to Socket | Gold | 152.4 mm | 6 " | 0.5 ' | 14 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | ||||
TE Connectivity AMP Connectors A3AAB-3018G | Unshielded | IDC | Socket to Socket | Gold | 30 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 457.2 mm | 1.5 ft | |||||
TE Connectivity AMP Connectors A3AAB-2436G | Unshielded | IDC | Socket to Socket | Gold | 24 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 914.4 mm | 3 ft | |||||
TE Connectivity AMP Connectors A3AAB-1636M | Unshielded | IDC | Socket to Socket | Gold | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 914.4 mm | 3 ft | 16 | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3AAB-1406M | Unshielded | IDC | Socket to Socket | Gold | 152.4 mm | 6 " | 0.5 ' | 14 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Multiple, Ribbon | |||
TE Connectivity AMP Connectors A3AAB-1036G | Unshielded | IDC | Socket to Socket | Gold | 10 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 914.4 mm | 3 ft | |||||
TE Connectivity AMP Connectors A3AAB-1006M | Unshielded | IDC | Socket to Socket | Gold | 152.4 mm | 6 " | 0.5 ' | 10 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Multiple, Ribbon | |||
TE Connectivity AMP Connectors A3AAB-1606G | Unshielded | IDC | Socket to Socket | Gold | 152.4 mm | 6 " | 0.5 ' | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 16 | ||||
TE Connectivity AMP Connectors A3AAB-3406M | Unshielded | IDC | Socket to Socket | Gold | 152.4 mm | 6 " | 0.5 ' | 34 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Multiple, Ribbon | |||
TE Connectivity AMP Connectors A3AAB-3006M | Unshielded | IDC | Socket to Socket | Gold | 152.4 mm | 6 " | 0.5 ' | 30 | 2 | 0.05 " | 1.27 mm | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Multiple, Ribbon |
Description
General part information
A3AAB Series

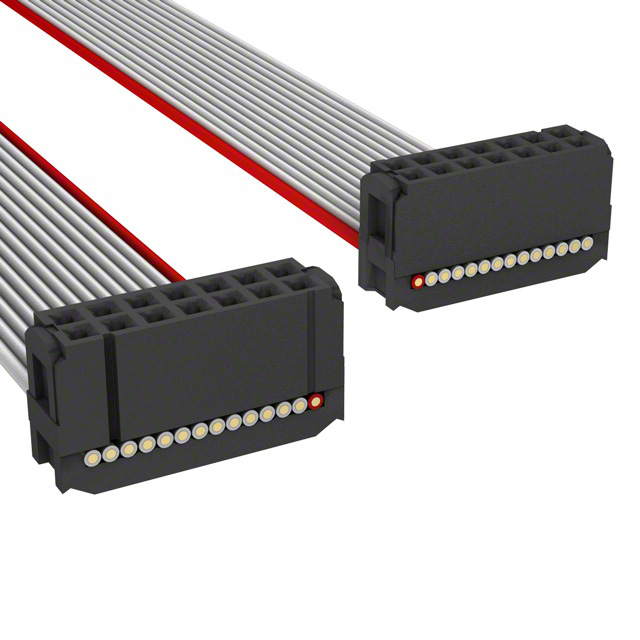

14 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
Documents
Technical documentation and resources
