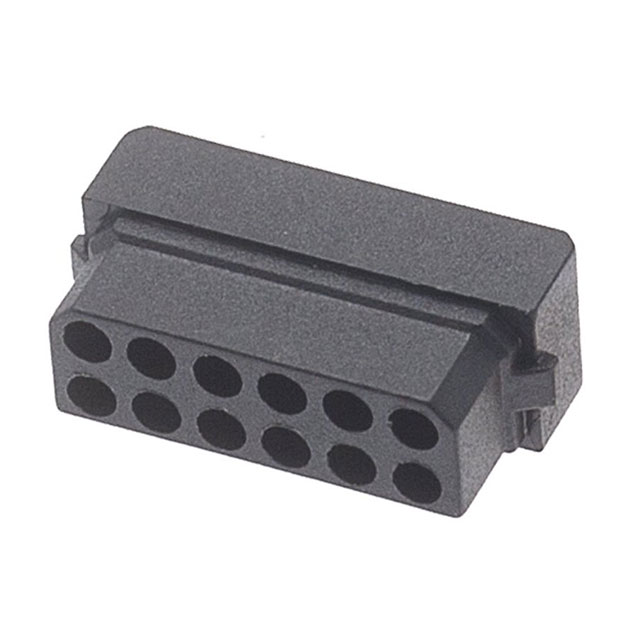

M80-1031298S

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, DATAMATE L-TEK M80-103 SERIES, CRIMP, RECEPTACLE, 12, 2 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, DATAMATE L-TEK M80-103 SERIES, CRIMP, RECEPTACLE, 12, 2 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Connector Type	Fastening Type	Note	Row Spacing	Row Spacing	Mounting Type	Contact Termination	Pitch [x]	Pitch [x]	Insulation Material	Color	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]
Harwin Inc. M80-1031298S	12	Receptacle	Latch Holder	Contacts Not Included	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	0.079 in	2 mm	Polyester Glass Filled	Black	Female Socket	2	-55 °C	125 °C
Harwin Inc. M80-1031898S	18	Receptacle	Latch Holder	Contacts Not Included	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	0.079 in	2 mm	Polyester Glass Filled	Black	Female Socket	2	-55 °C	125 °C
Harwin Inc. M80-1032098S	20	Receptacle	Latch Holder	Contacts Not Included	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	0.079 in	2 mm	Polyester Glass Filled	Black	Female Socket	2	-55 °C	125 °C
Harwin Inc. M80-1030698S	6	Receptacle	Latch Holder	Contacts Not Included	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	0.079 in	2 mm	Polyester Glass Filled	Black	Female Socket	2	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
